• Rear axle, 3.42 ratio

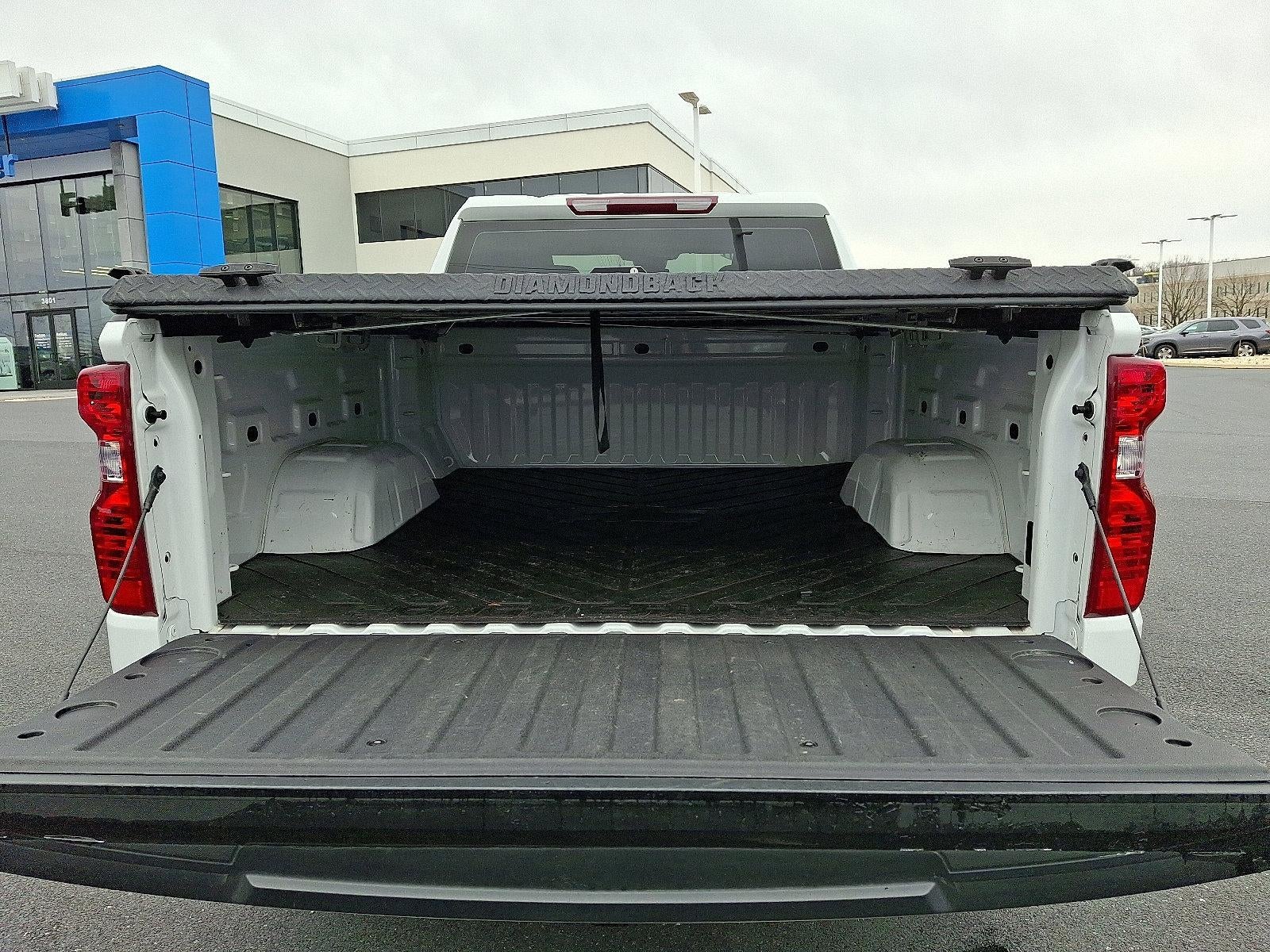

• Durabed, pickup bed

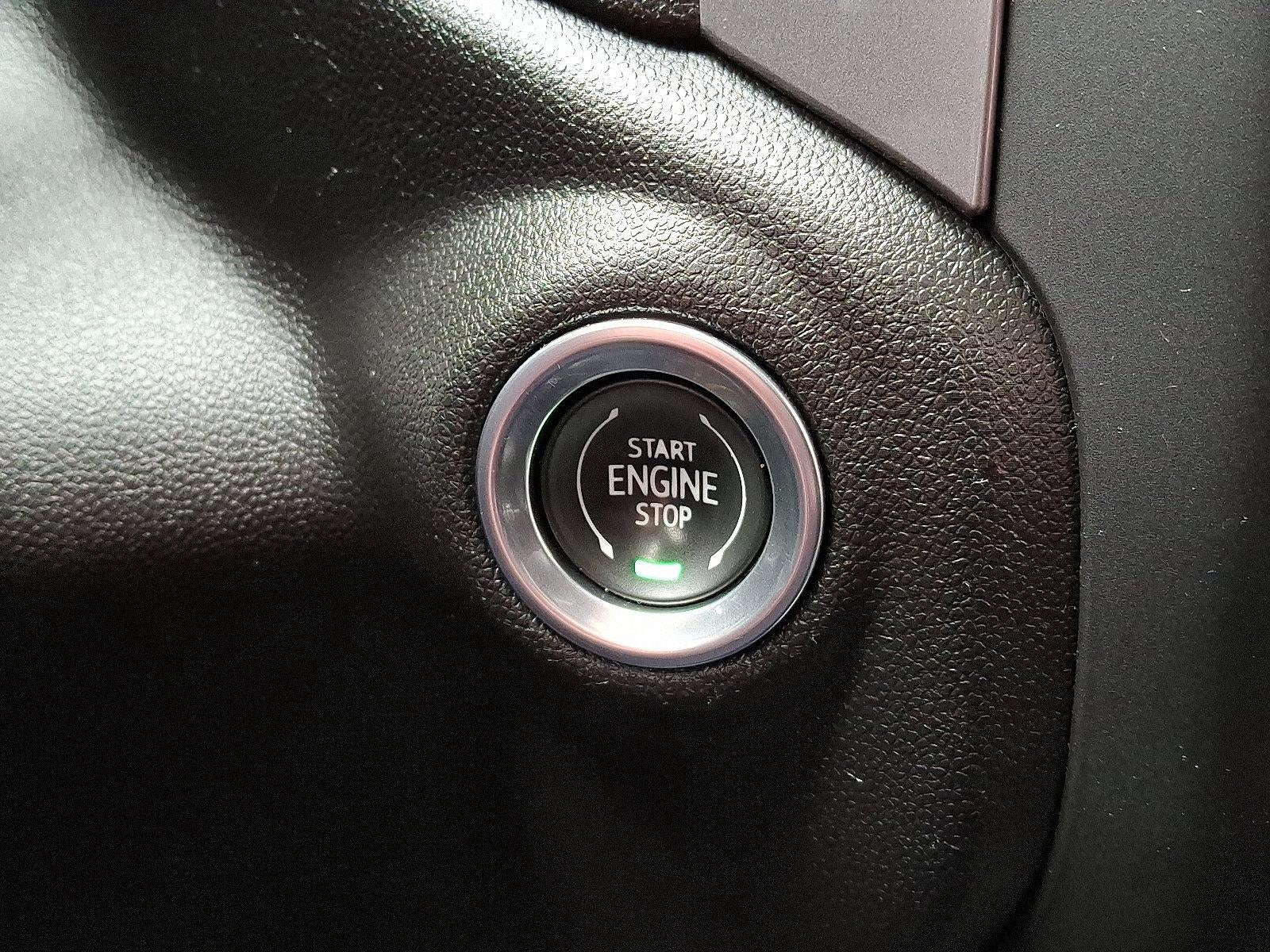

• Push Button Start
• Automatic Stop/Start (Not available with (5W4) Special Services Package, (9C1) Police Pursuit Package or (FHS) E85 FlexFuel capability.)

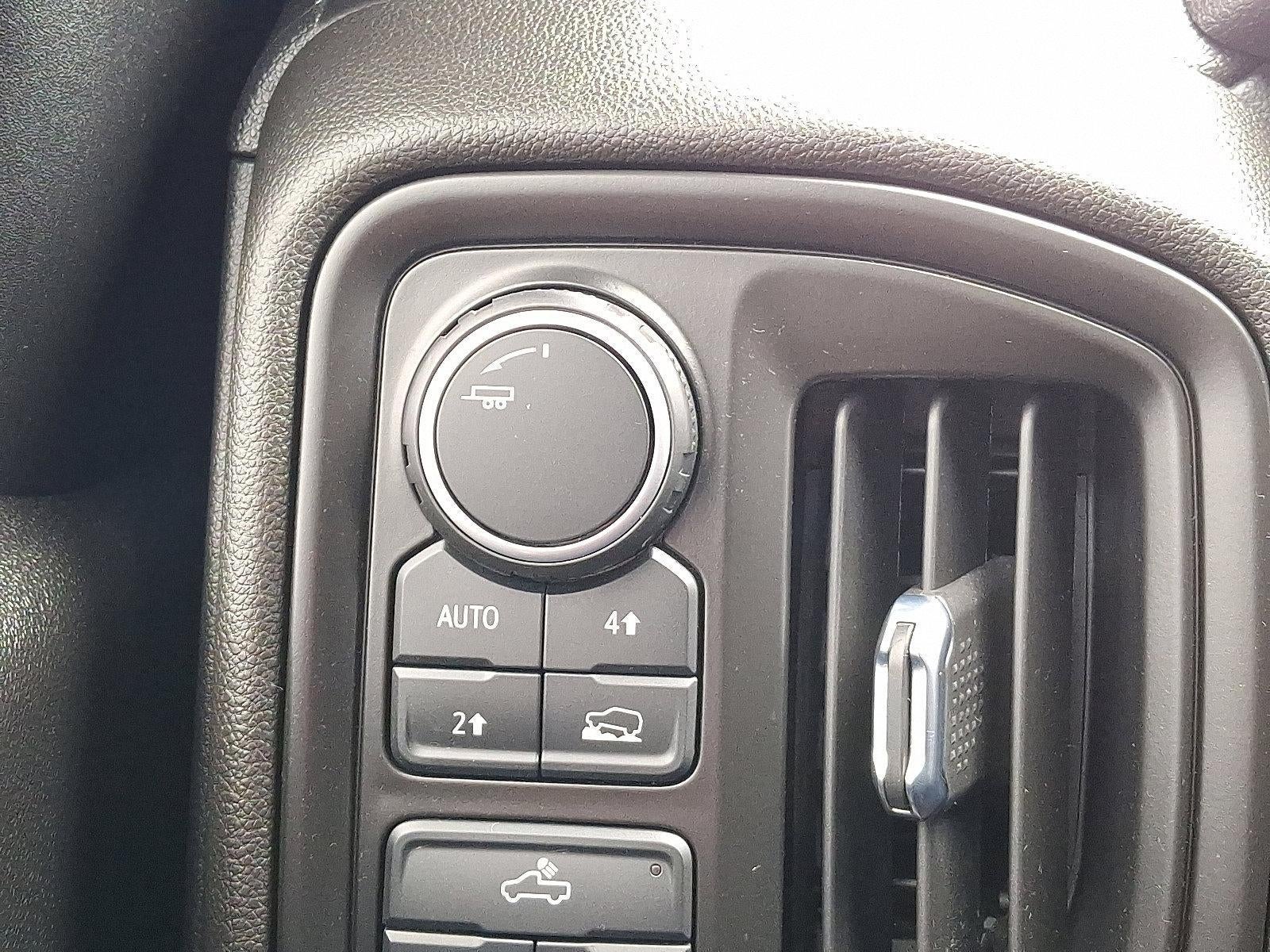

• Transfer case, single speed electronic Autotrac with push button control (4WD models only)

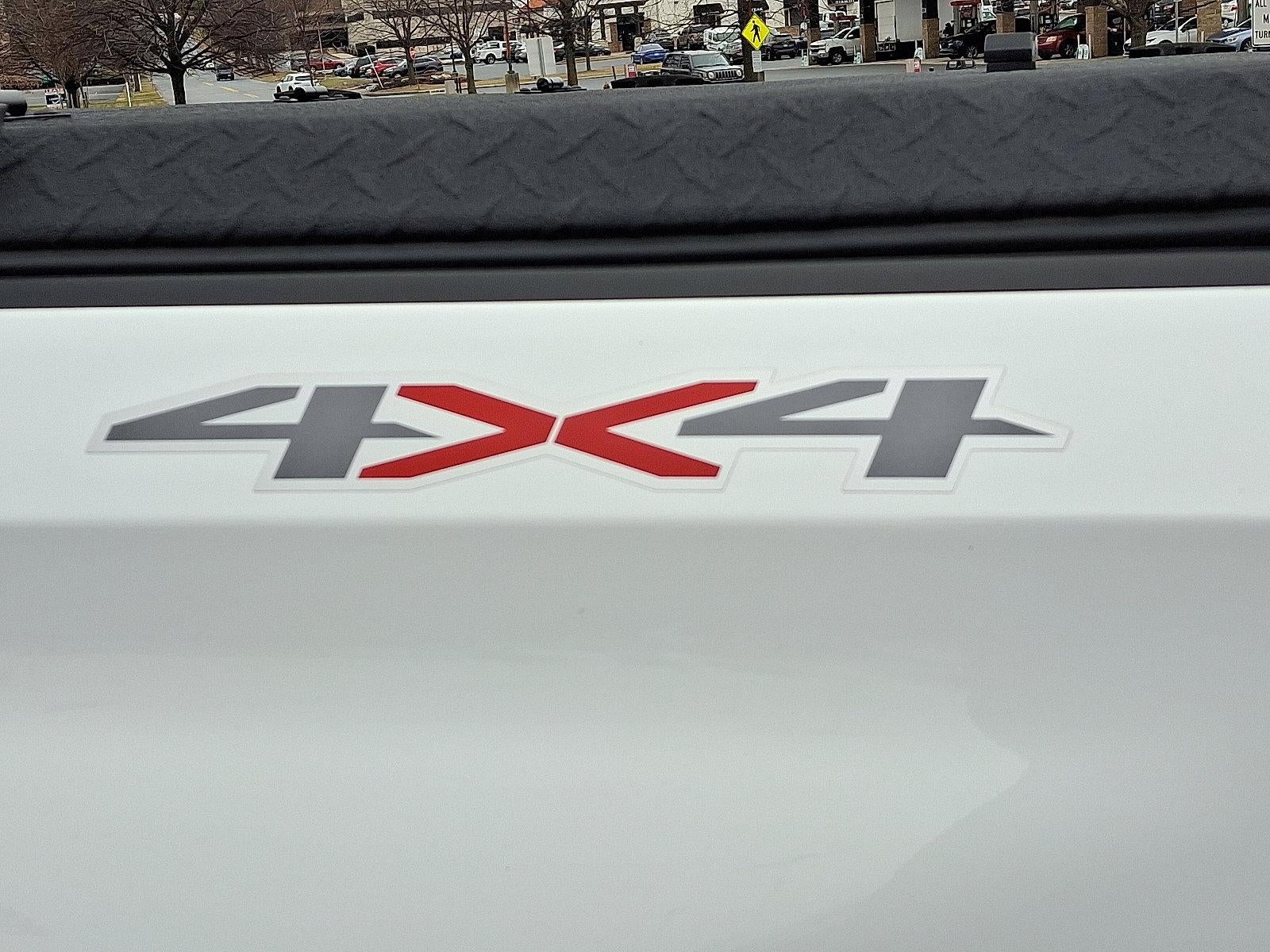

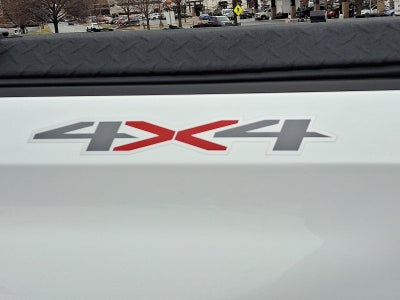

• Four wheel drive
• Battery, heavy-duty 730 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Recovery hooks, front, frame-mounted, Black (Included with 4WD models or on 2WD models with (PQA) WT Safety Package. Available free flow on 2WD models.) (Included with 4WD models.)
• Frame, fully-boxed, hydroformed front section
• Suspension Package, Standard
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Brake lining wear indicator
• Capless Fuel Fill
• Exhaust, single outlet

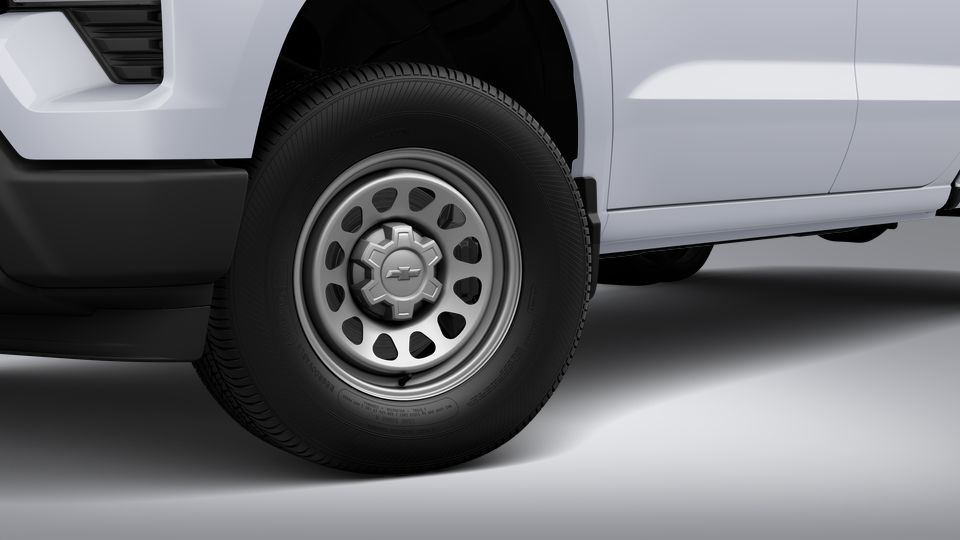

• Wheels, 17" x 8" (43.2 cm x 20.3 cm) Ultra Silver painted steel
• Tires, 255/70R17 all-season, blackwall
• Tire, spare 255/70R17 all-season, blackwall (Included with (QBN) 255/70R17 all-season, blackwall tires.)
• Wheel, 17" x 8" (43.2 cm x 20.3 cm) full-size, steel spare
• Tire carrier lock, keyed cylinder lock that utilizes same key as ignition and door

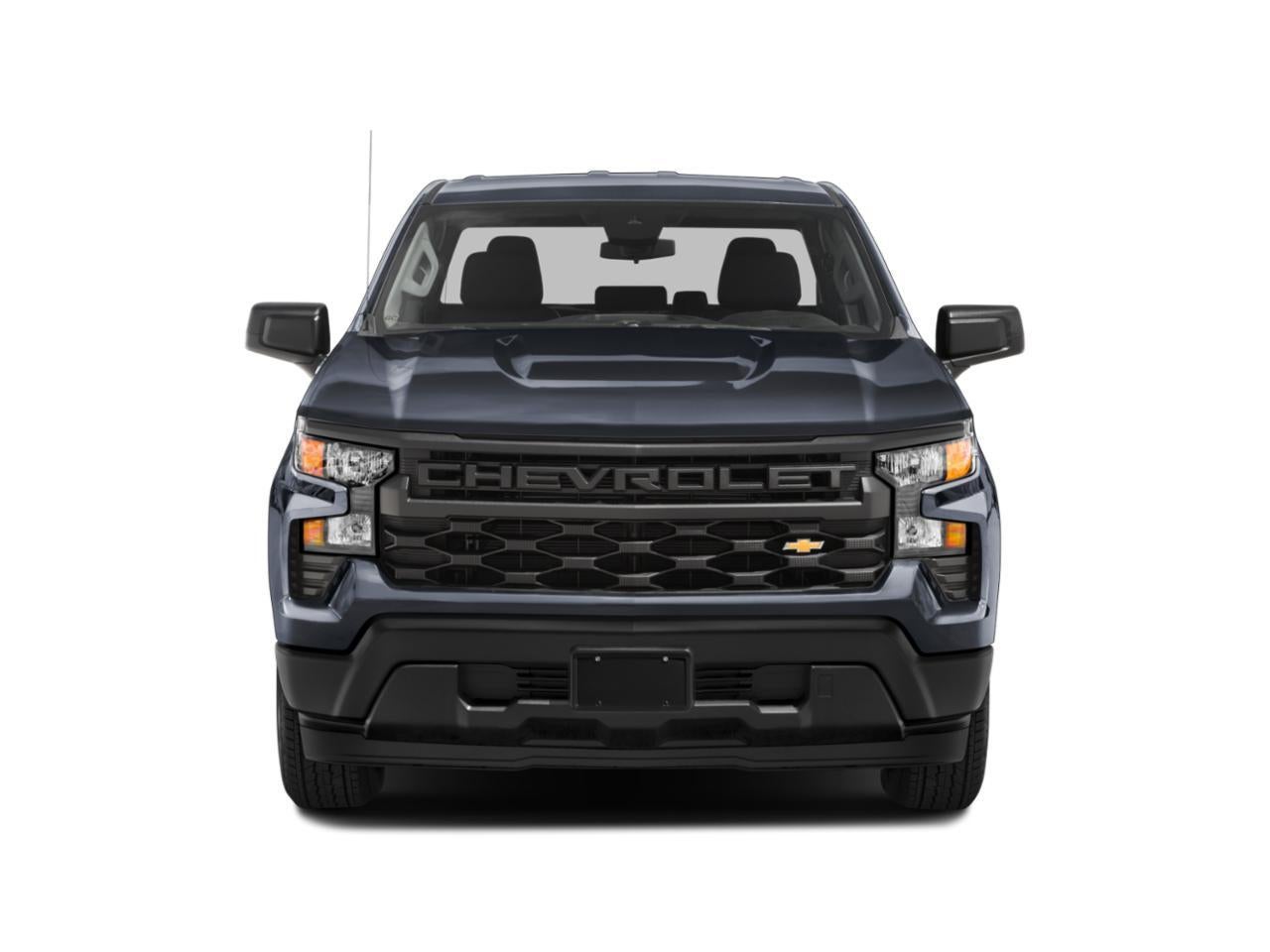

• Bumpers, front, Black (semi-gloss)
• Bumpers, rear, Black (semi-gloss)
• CornerStep, rear bumper
• Cargo tie downs (12), fixed rated at 500 lbs per corner

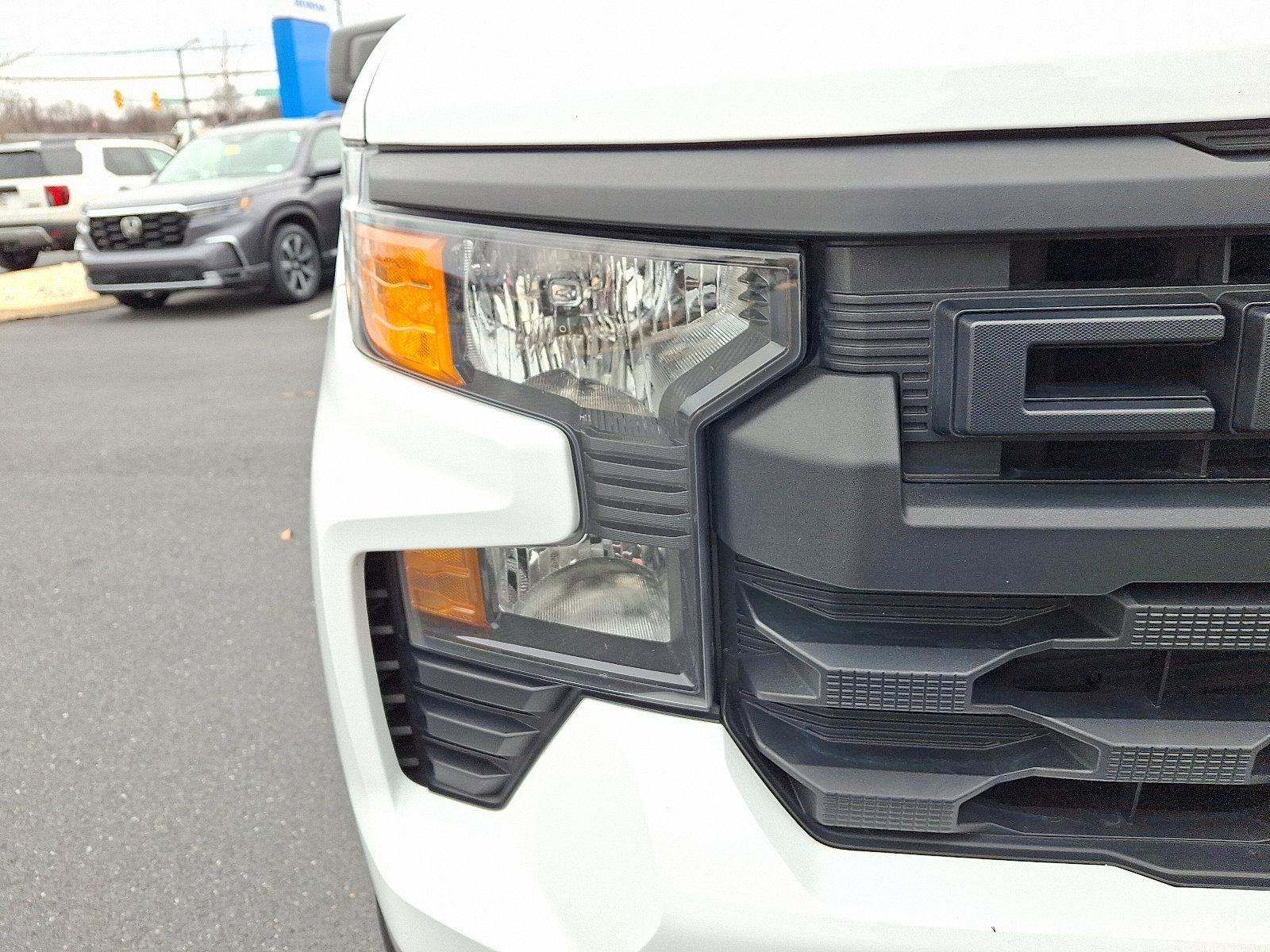

• Headlamps, halogen reflector with halogen Daytime Running Lamps
• IntelliBeam, automatic high beam on/off
• Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel (incandescent on Regular Cab models, LED on Crew Cab and Double Cab models)
• Taillamps with incandescent tail, stop and reverse lights
• Mirrors, outside manual, Black (Standard on Crew Cab and Double Cab models only. Not available on Regular Cab models.)
• Glass, solar absorbing, tinted
• Door handles, Black
• Tailgate and bed rail protection cap, top

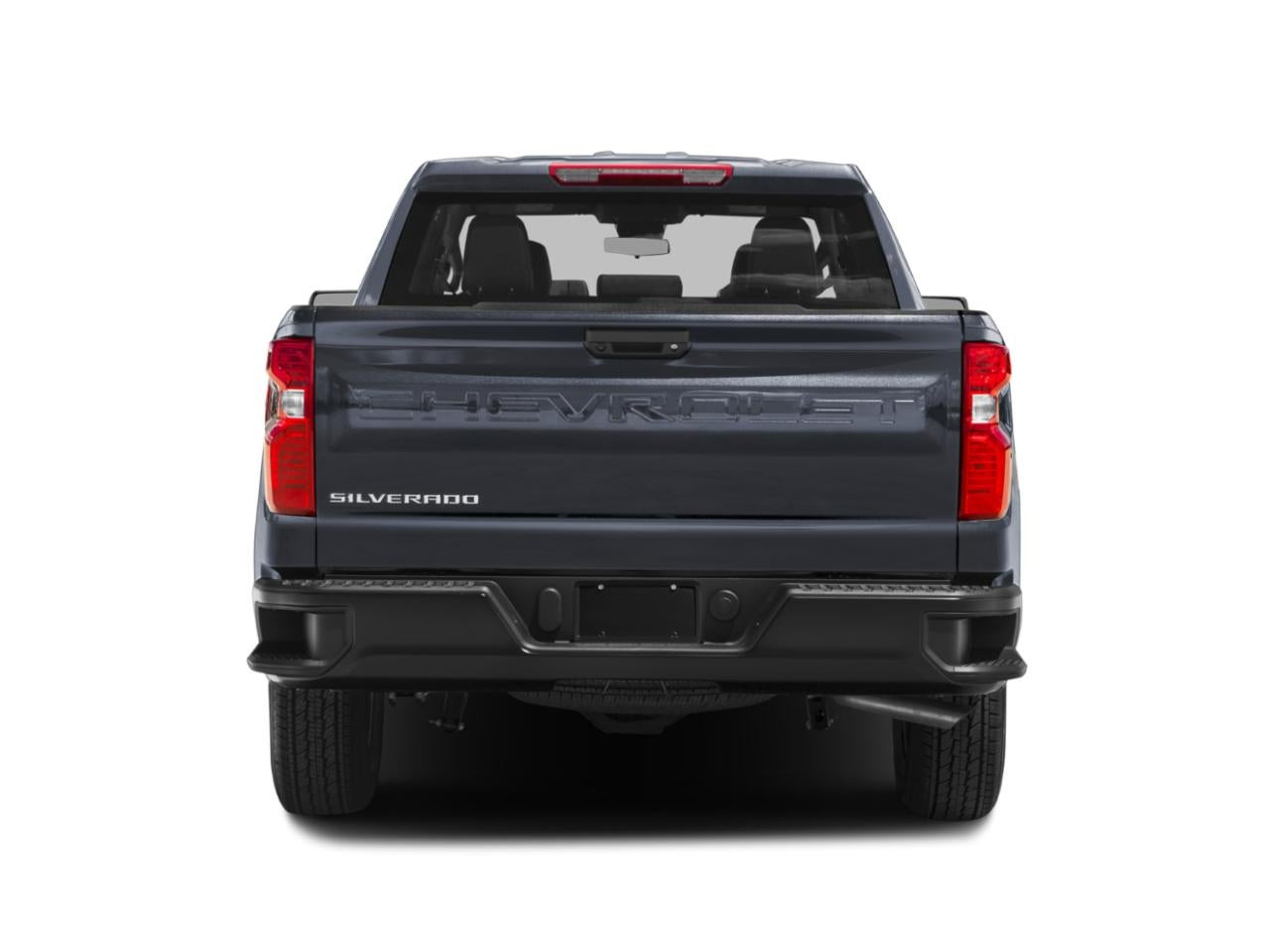

• Tailgate, standard
• Tailgate, locking utilizes same key as ignition and door (Removed when (QT5) EZ Lift power lock and release tailgate is ordered.)
• Tailgate, gate function manual, no EZ Lift

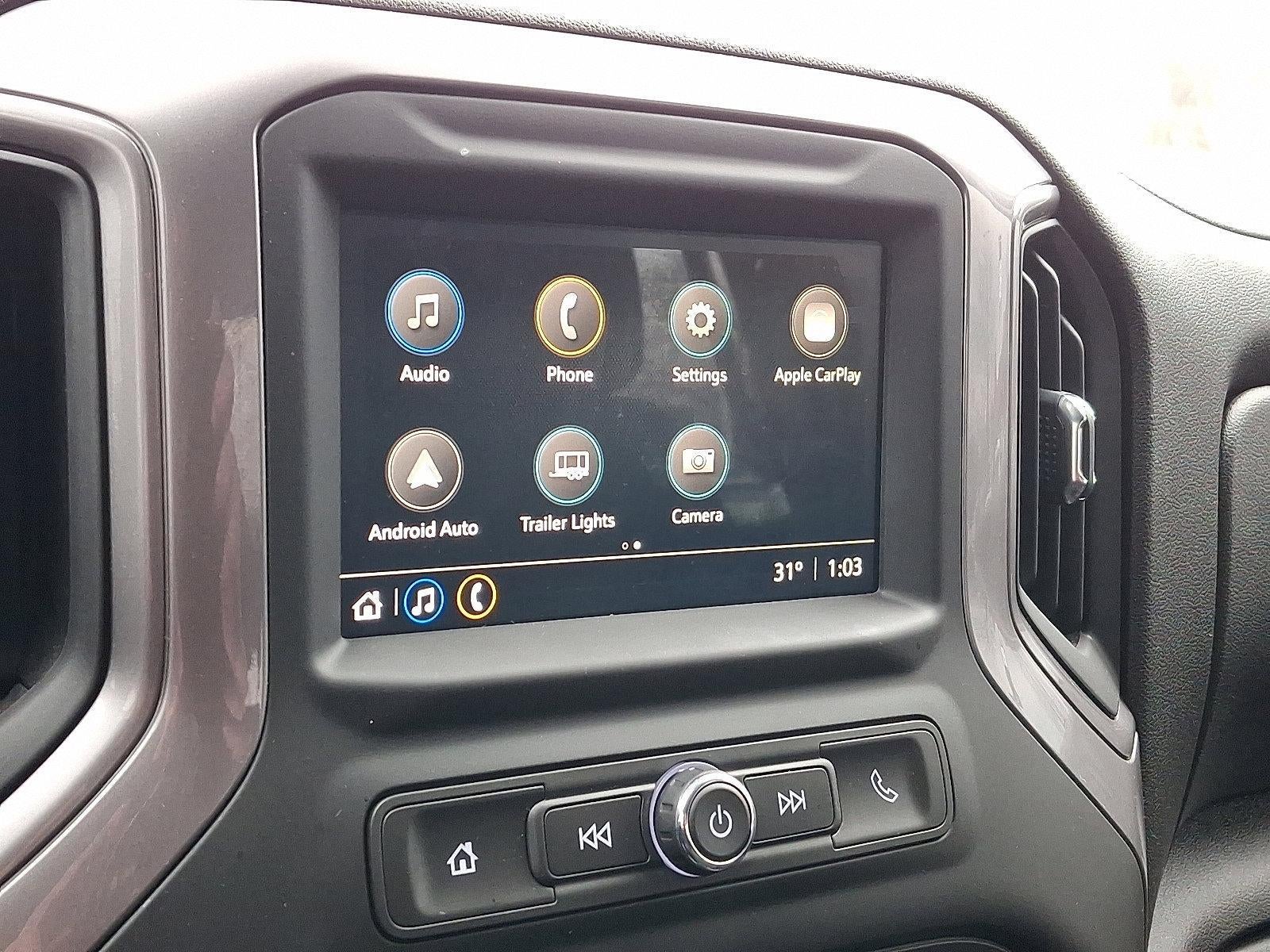

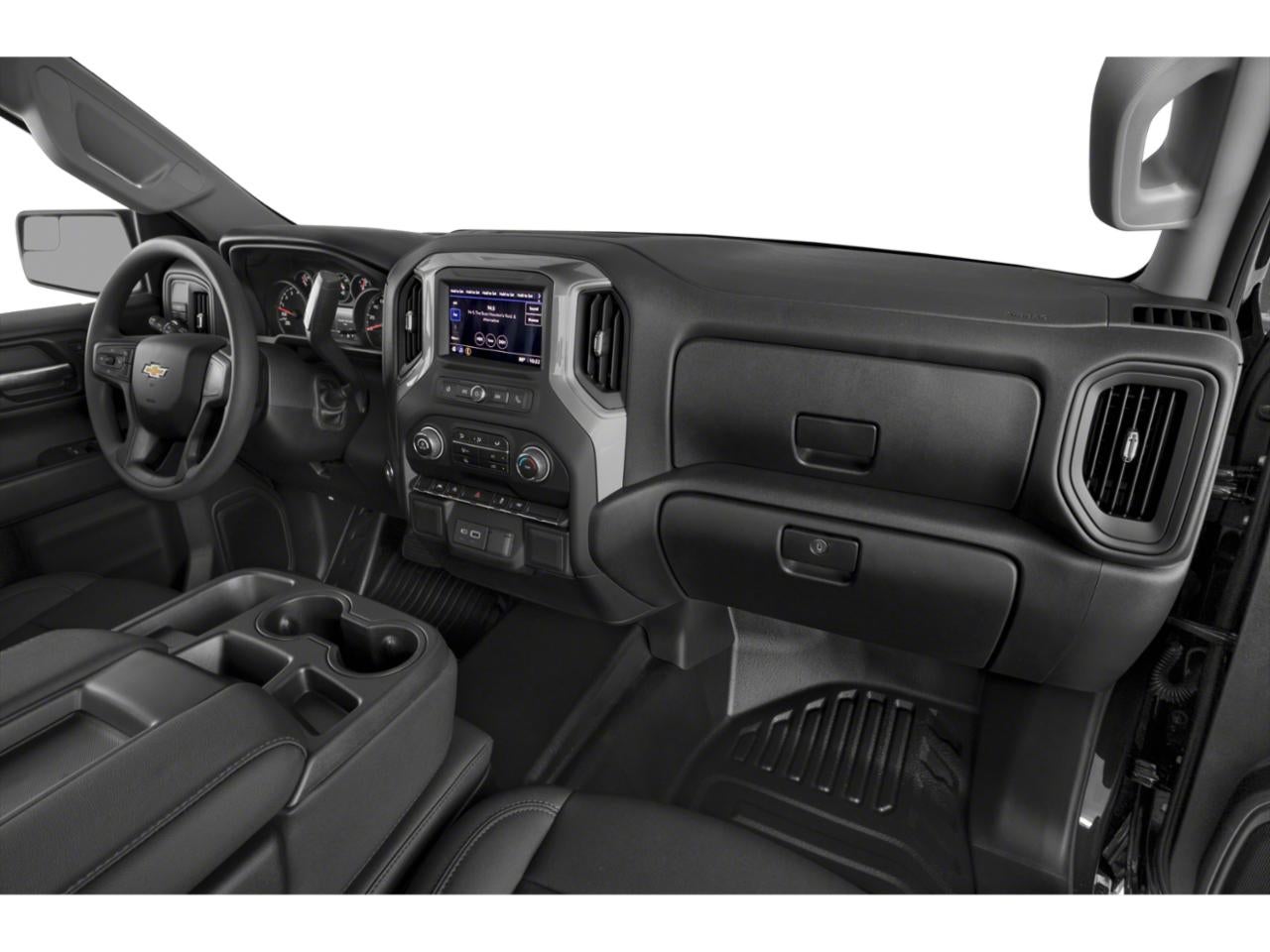

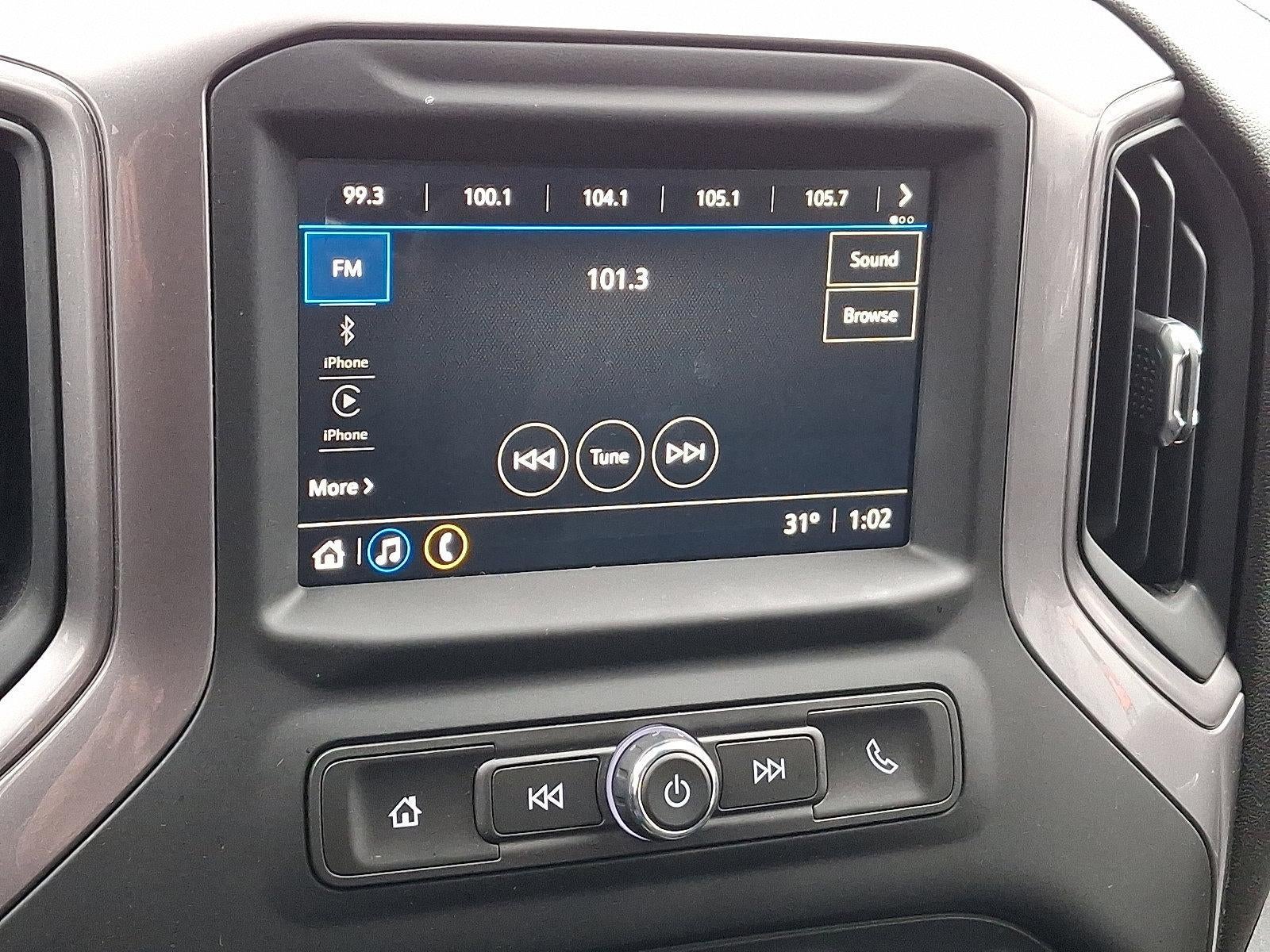

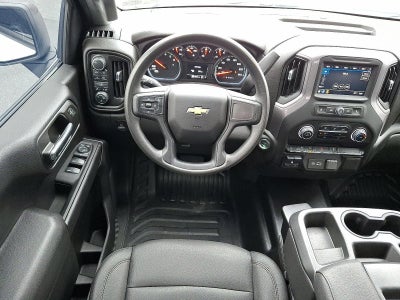

• Audio system, Chevrolet Infotainment 3 system 7" diagonal color touchscreen, AM/FM stereo. Additional features for compatible phones include: Bluetooth® audio streaming for 2 active devices, voice command pass-through to phone, wired Apple CarPlay and Android Auto capable.
• Audio system feature, 6-speaker system (Requires Crew Cab or Double Cab model.)
• Bluetooth® for phone, connectivity to vehicle infotainment system

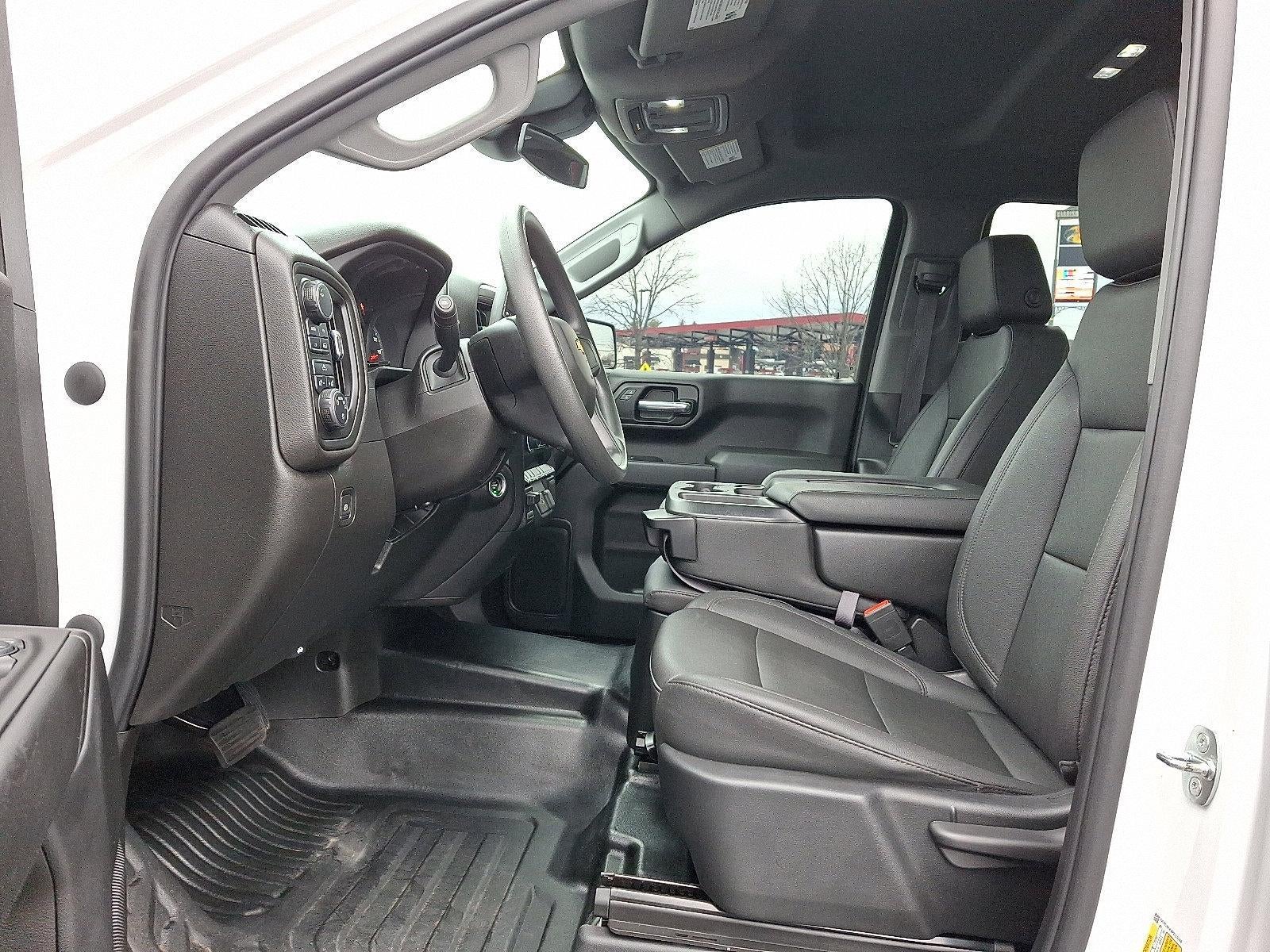

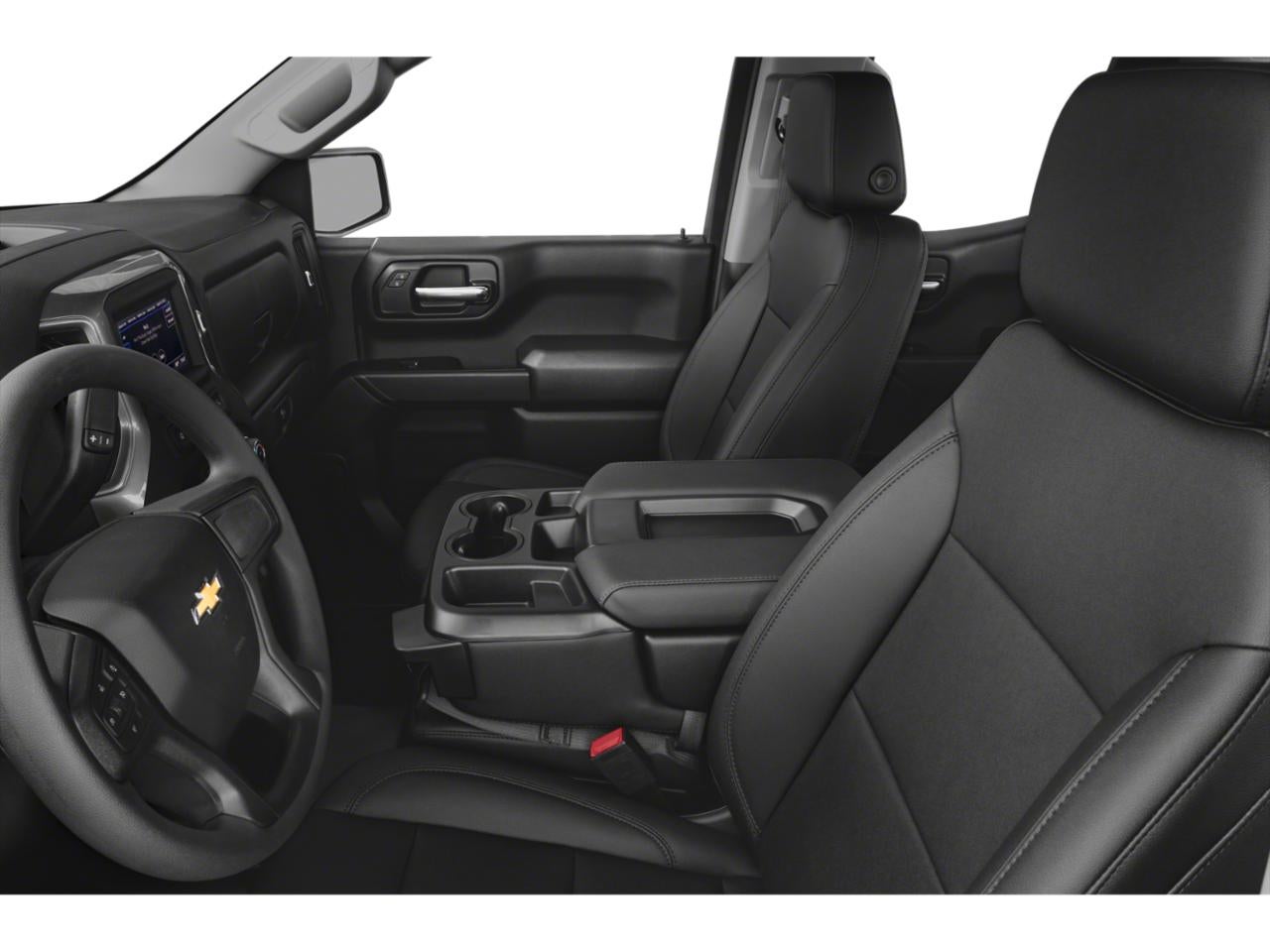

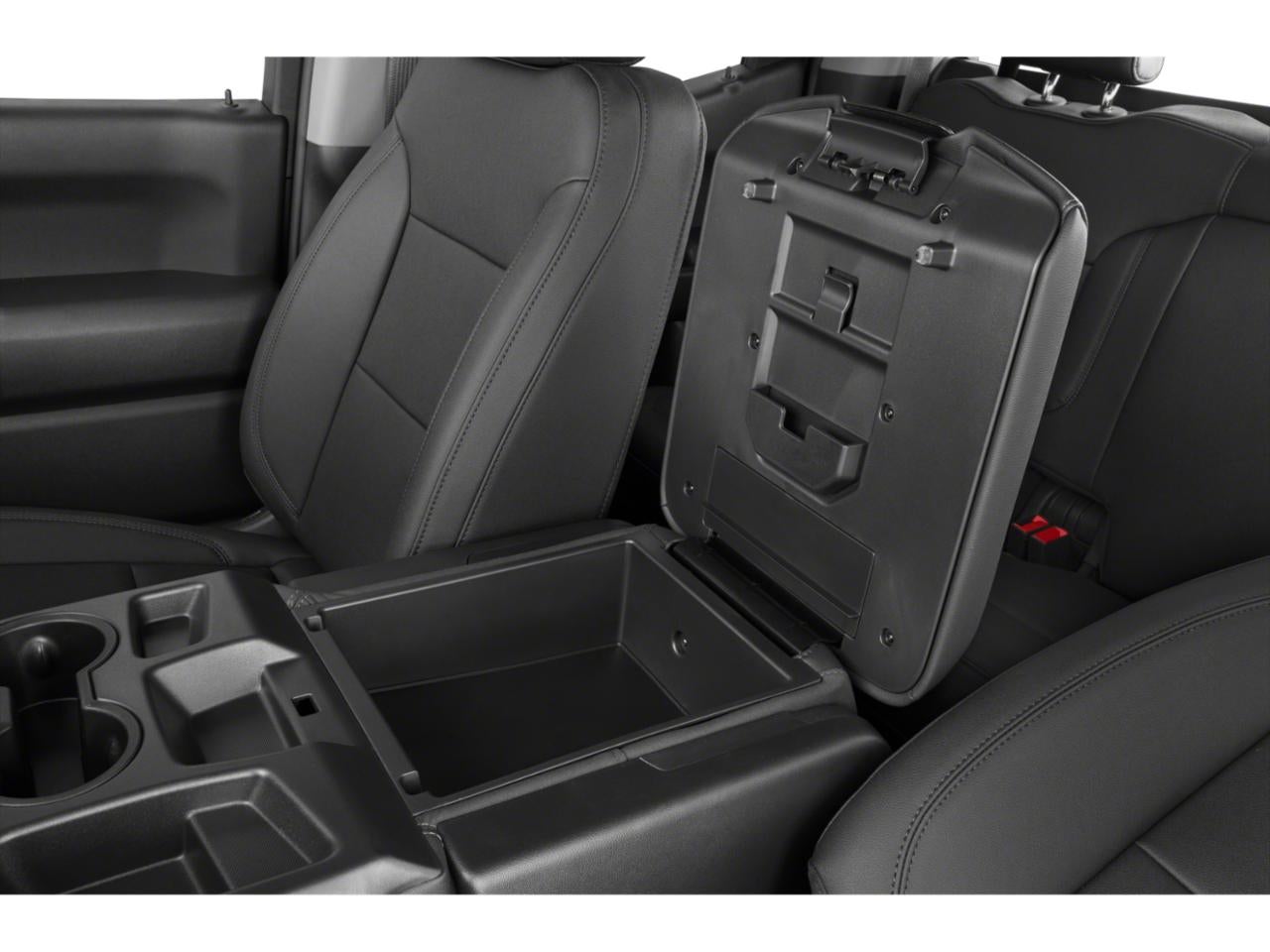

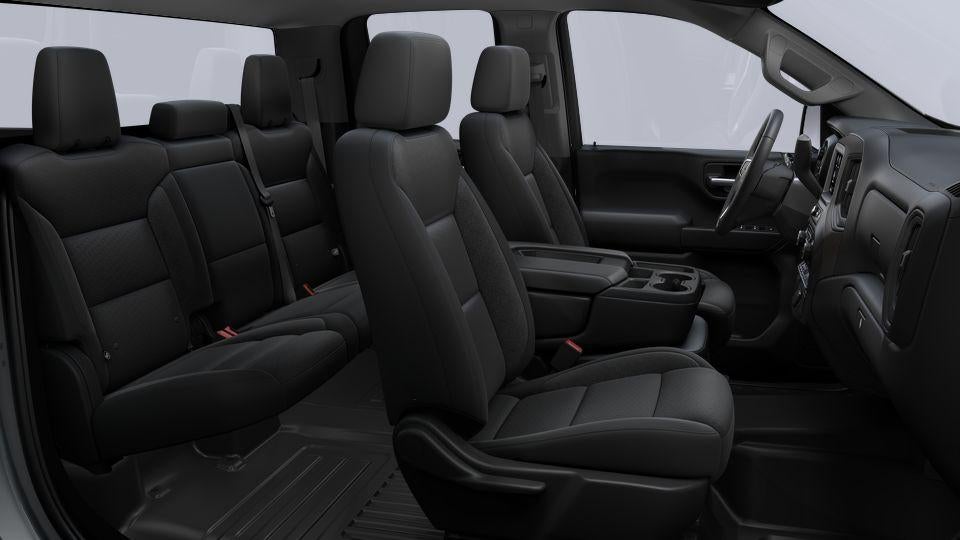

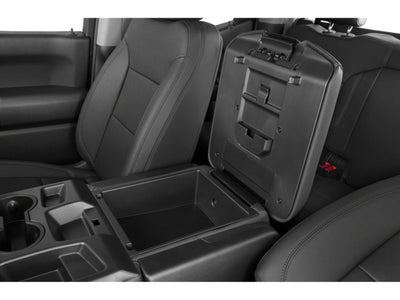

• Seats, front 40/20/40 split-bench with covered armrest storage and under-seat storage (lockable)
• Seat trim, Vinyl
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual

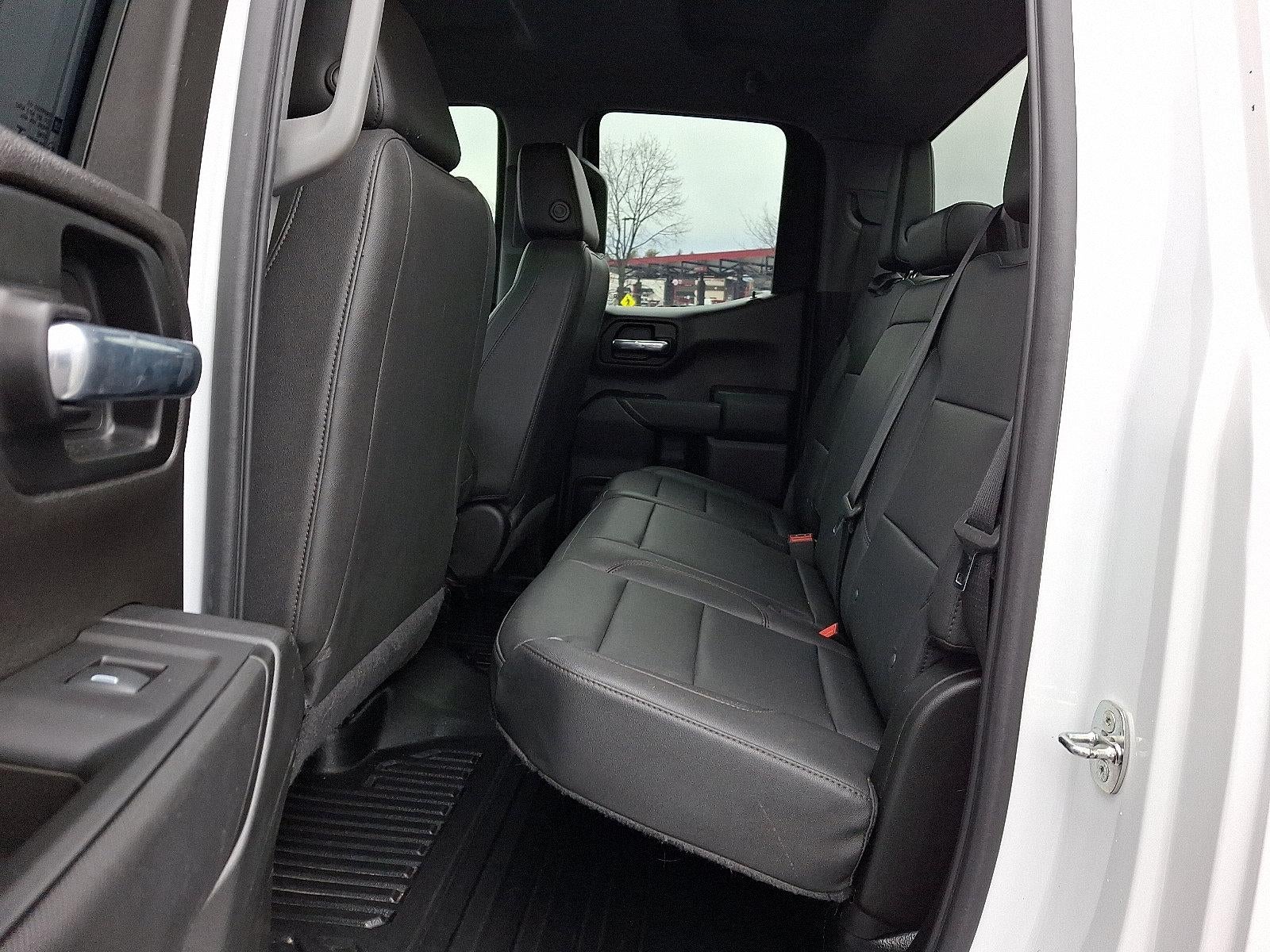

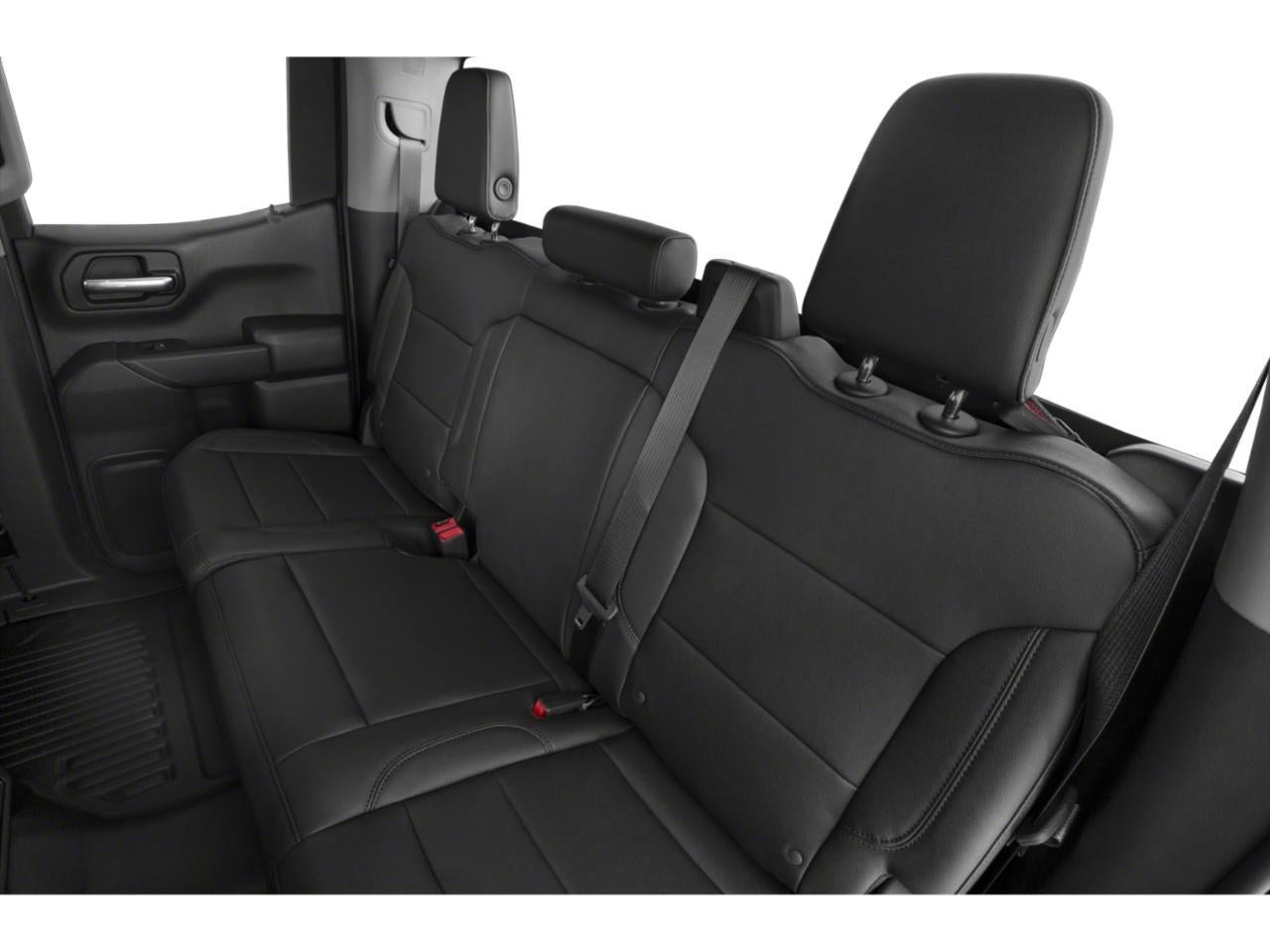

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor) (Requires Crew Cab or Double Cab model.)
• Floor covering, rubberized-vinyl (Not available with LPO floor liners.)

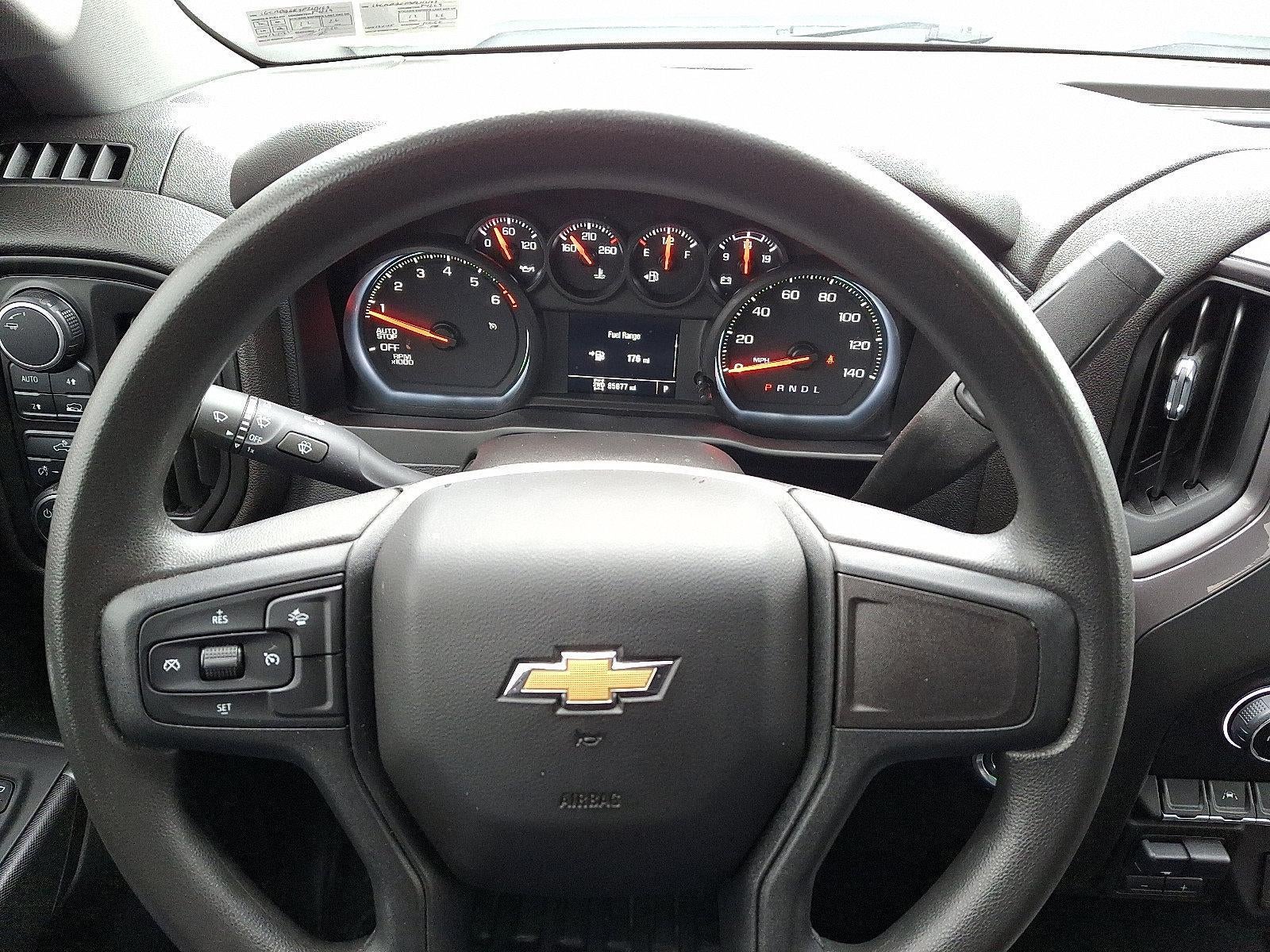

• Steering wheel, urethane
• Steering column, Tilt-Wheel, manual with wheel locking security feature

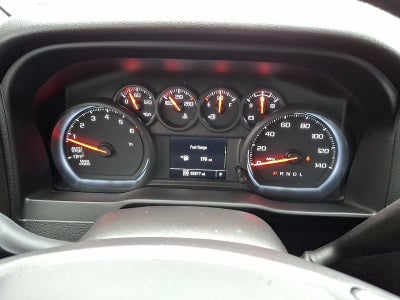

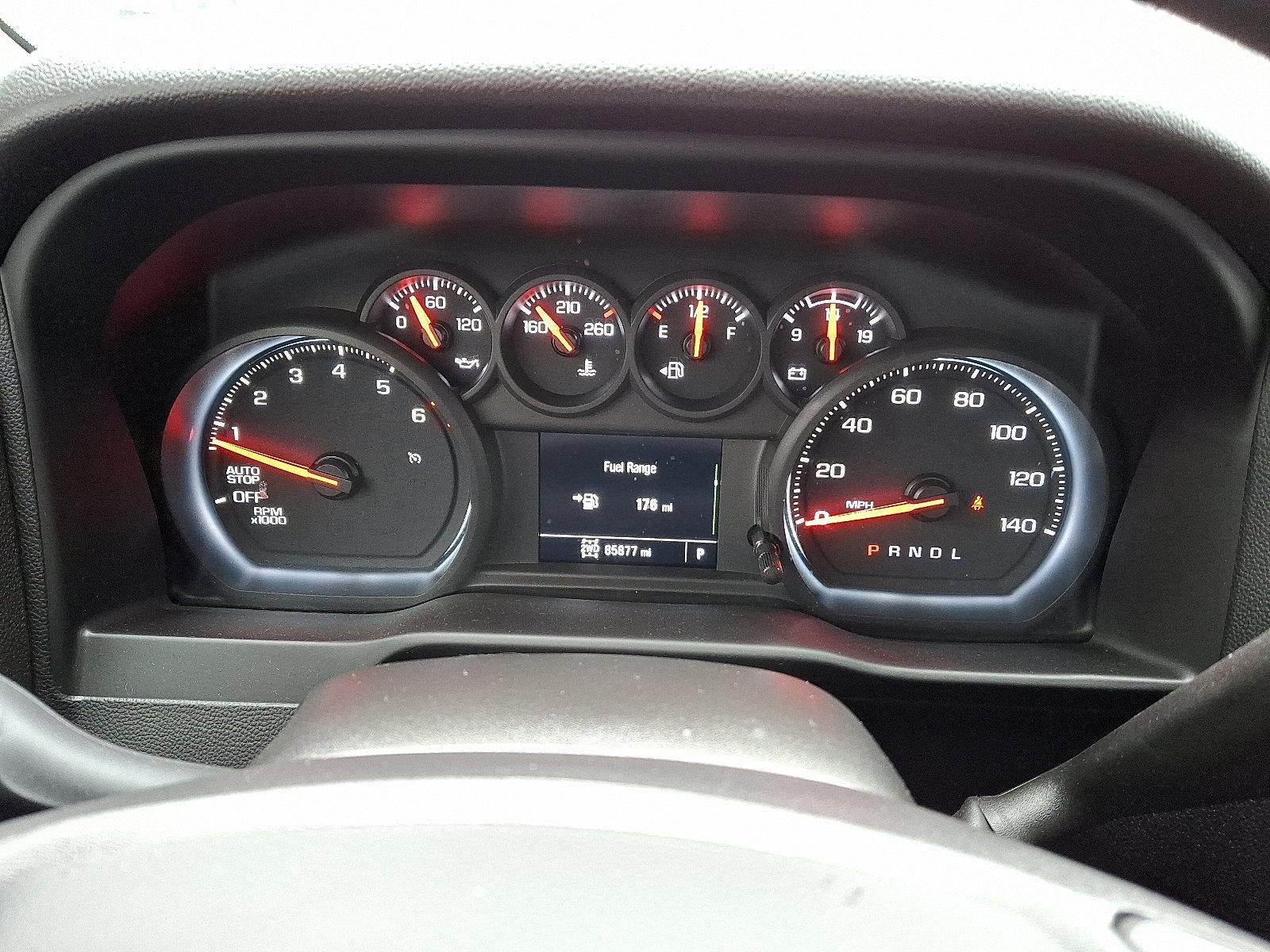

• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display located in radio display
• Rear Seat Reminder (Requires Crew Cab or Double Cab model.)

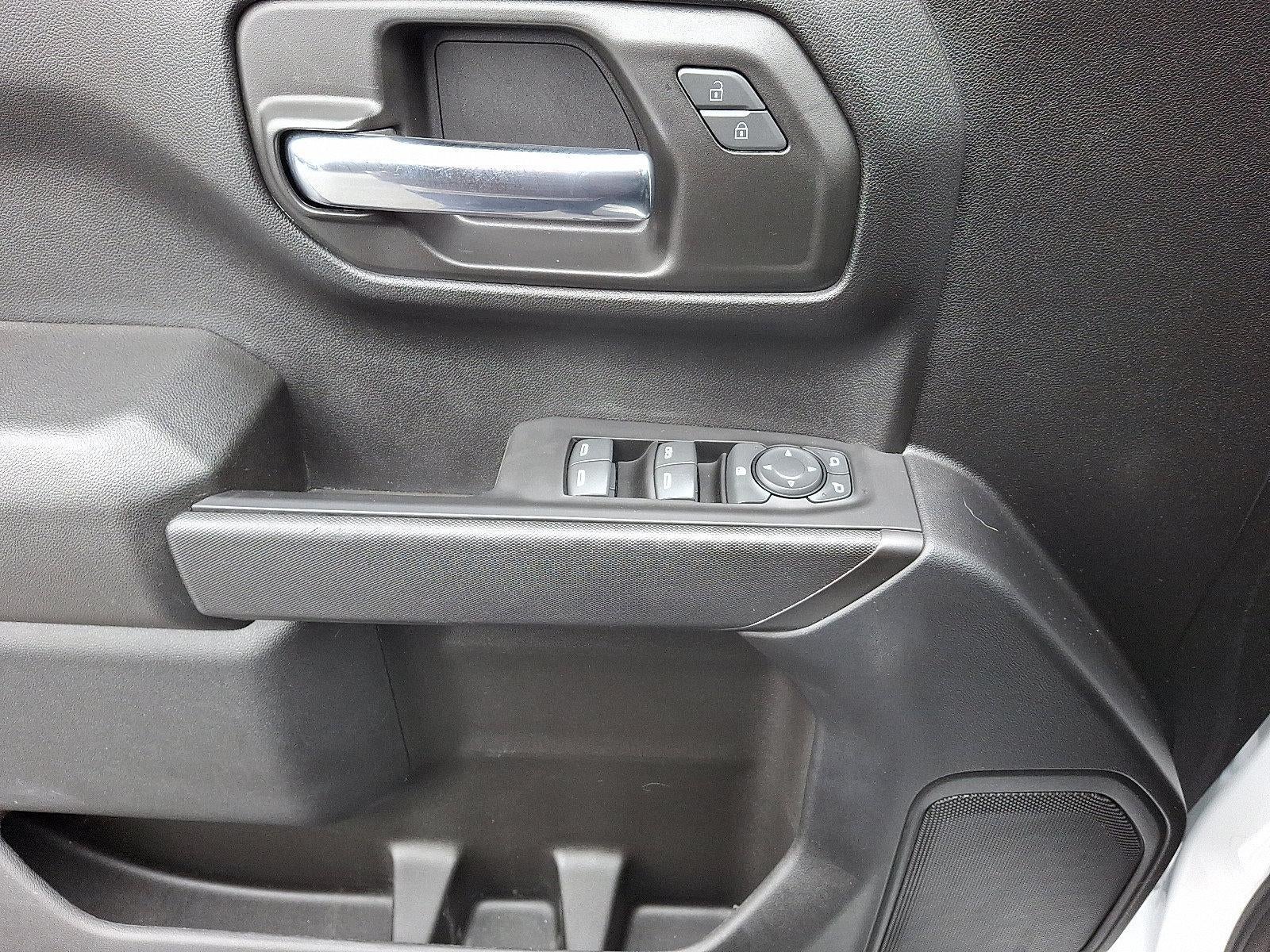

• Window, power front, drivers express up/down
• Window, power front, passenger express down
• Windows, power rear, express down (Not available with Regular Cab models.)
• Door locks, power
• Remote Keyless Entry, with 2 transmitters
• Power outlet, front auxiliary, 12-volt

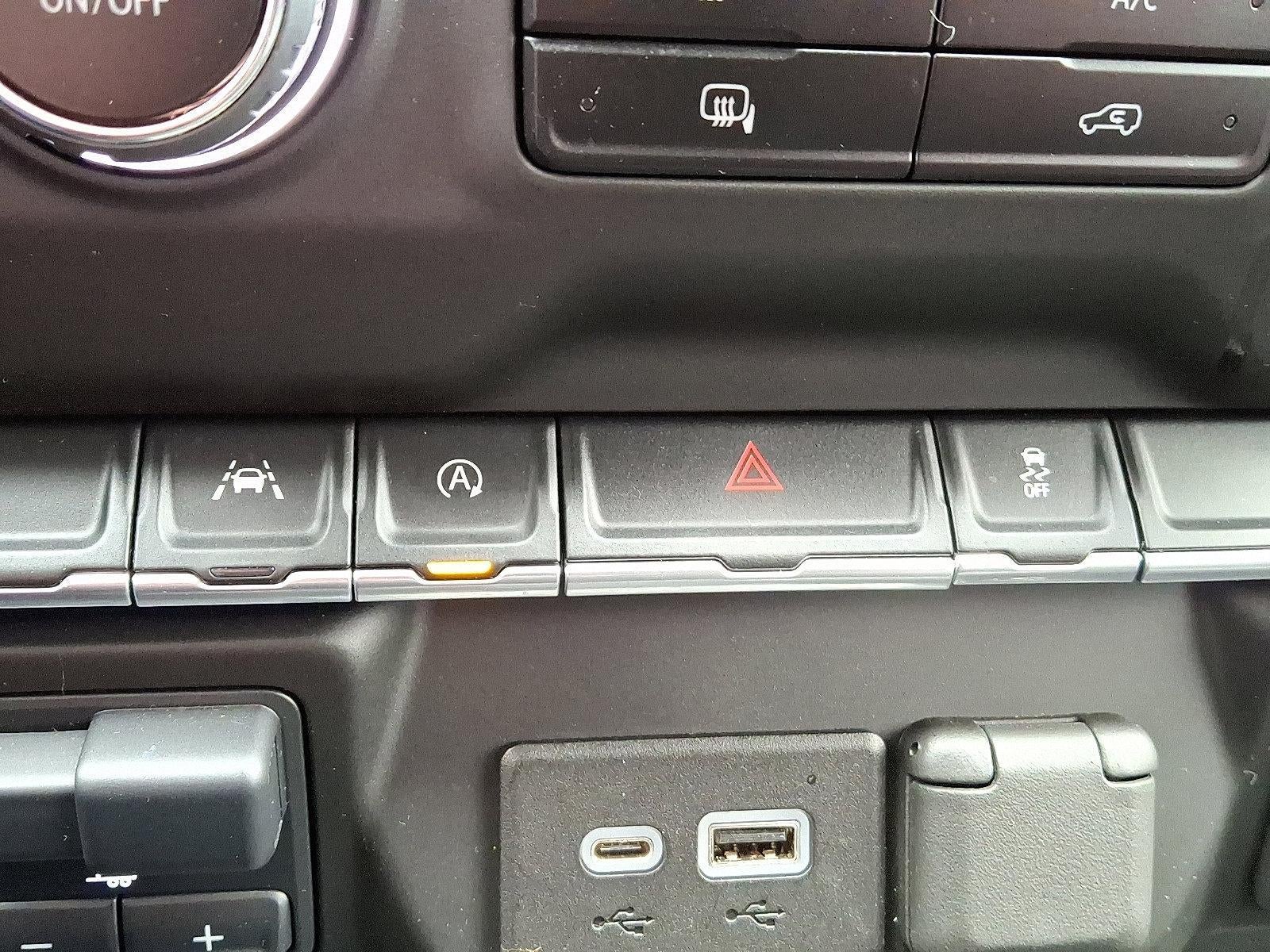

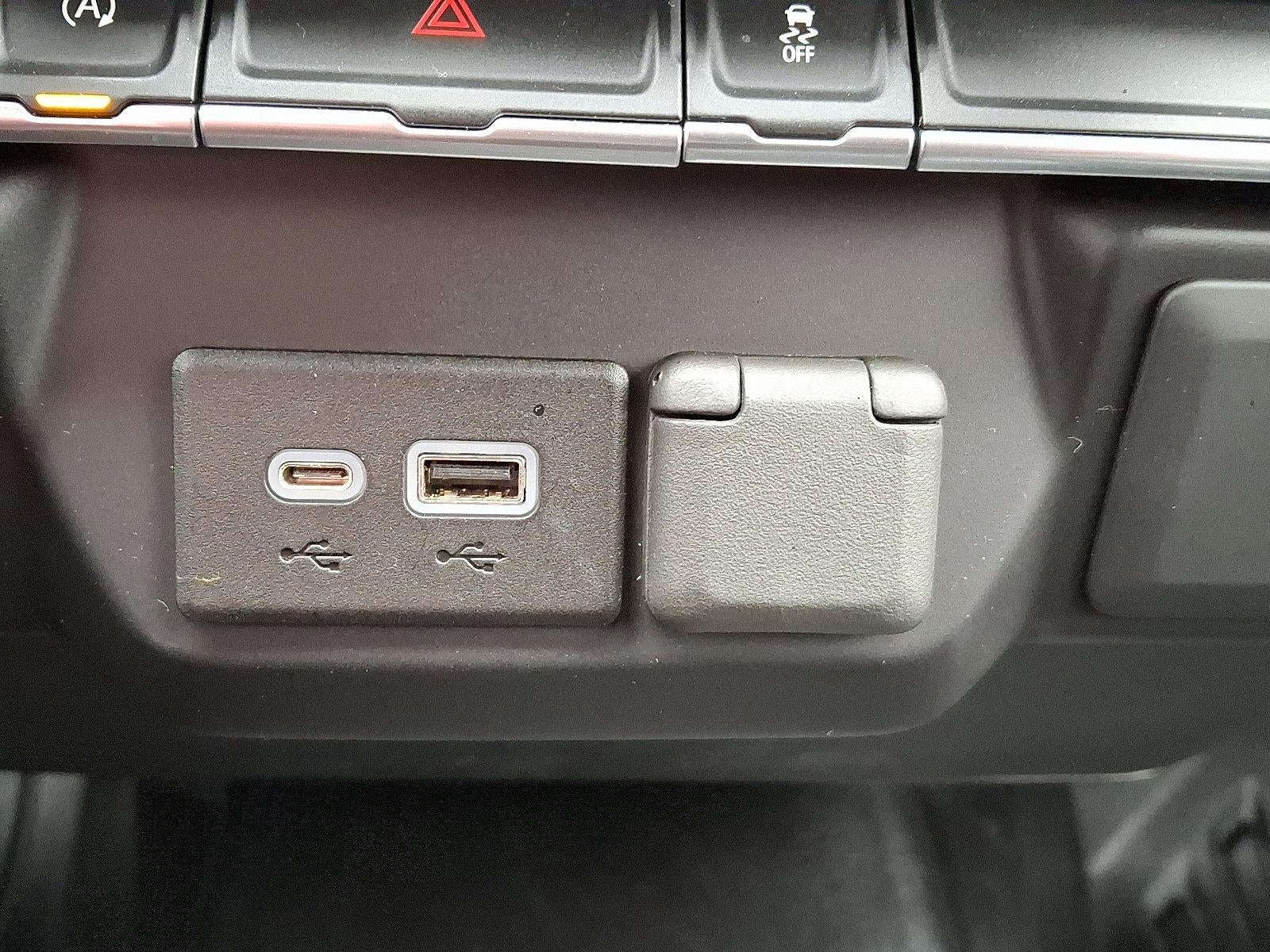

• USB Ports, 2, Charge/Data ports located on instrument panel

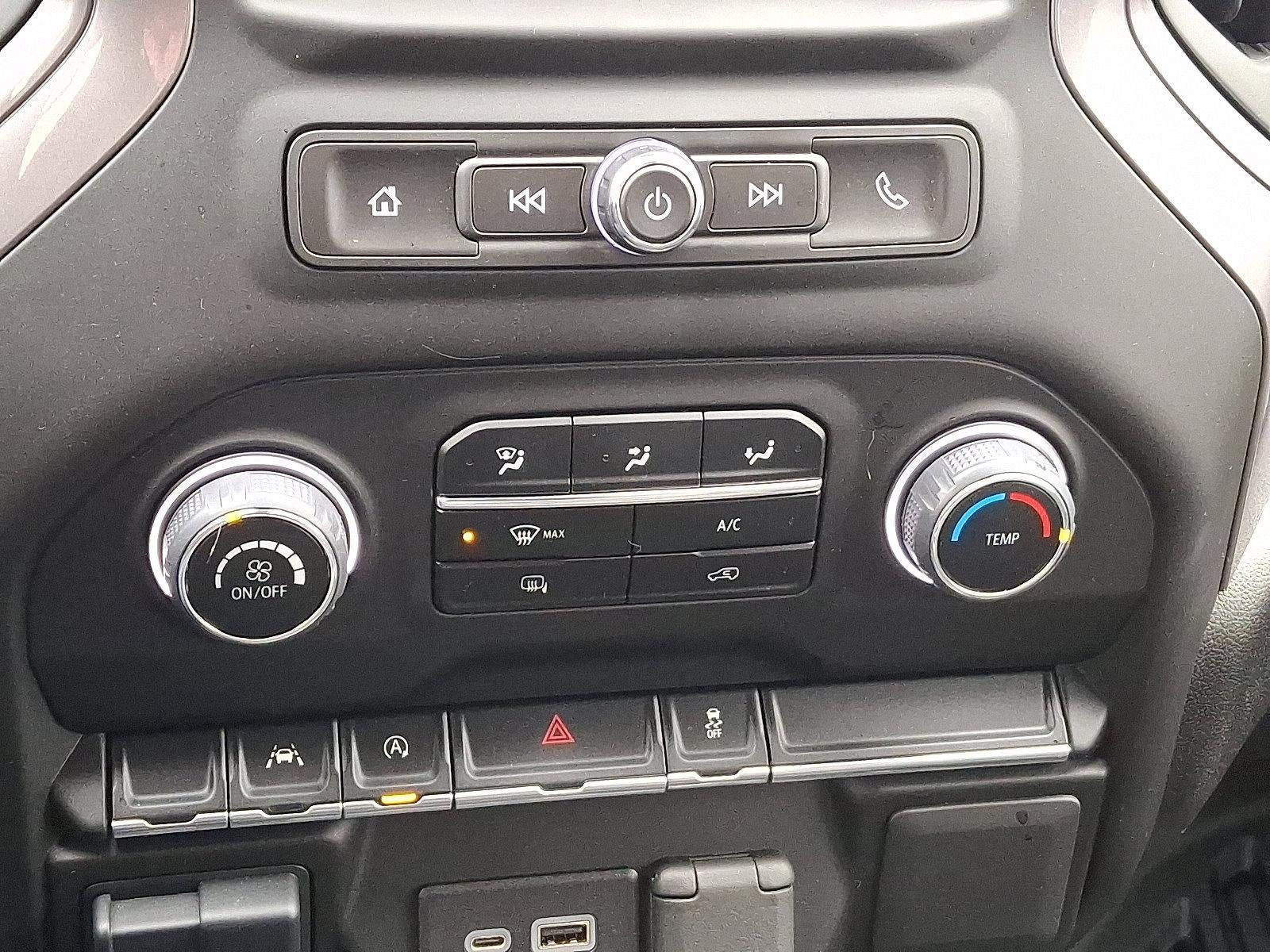

• Air conditioning, single-zone manual
• Air vents, rear, heating/cooling (Not available on Regular Cab models.)
• Mirror, inside rearview, manual tilt
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted

• Automatic Emergency Braking
• Front Pedestrian Braking
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist

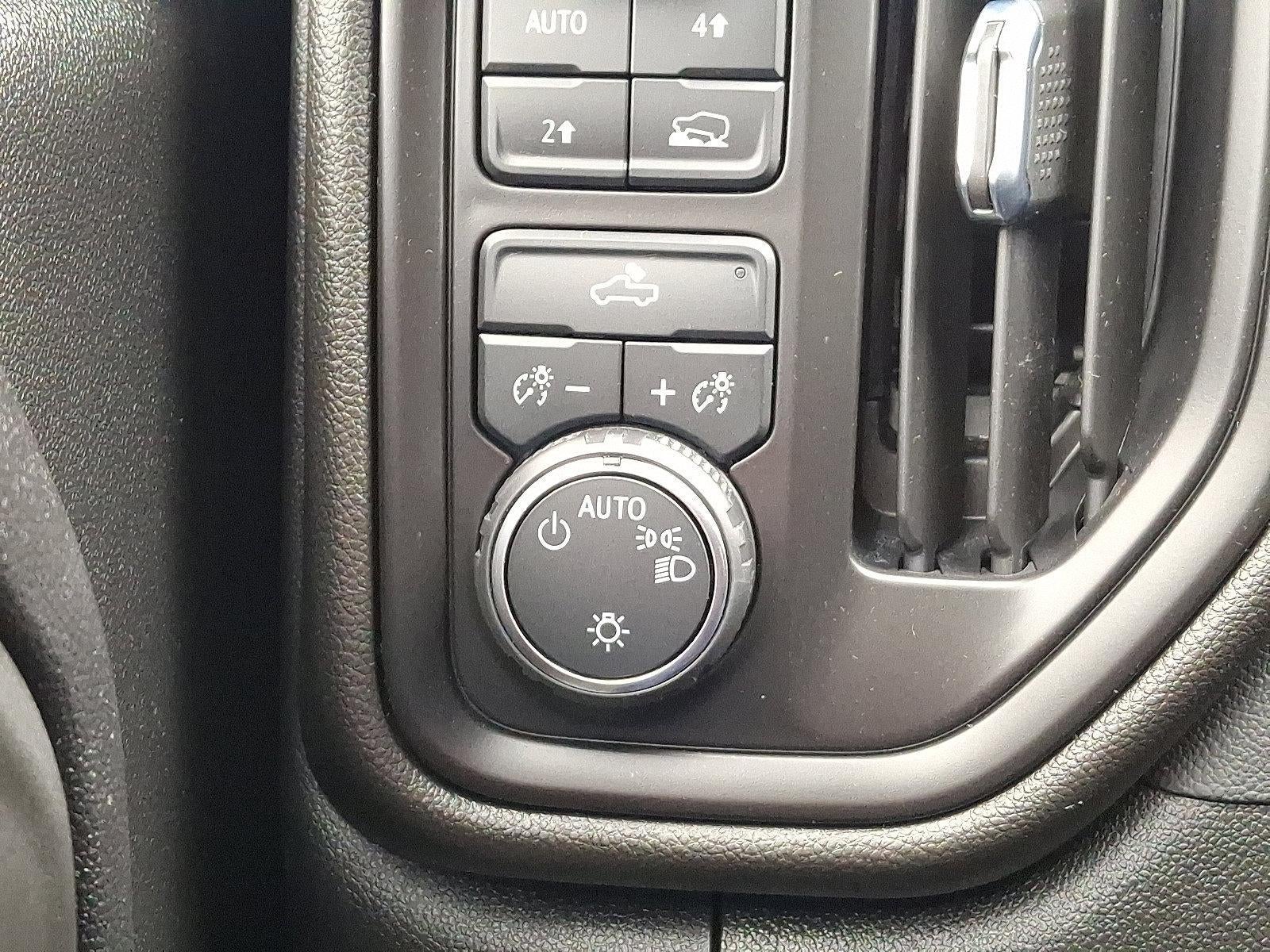

• Daytime Running Lamps with automatic exterior lamp control
• Airbags, dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)

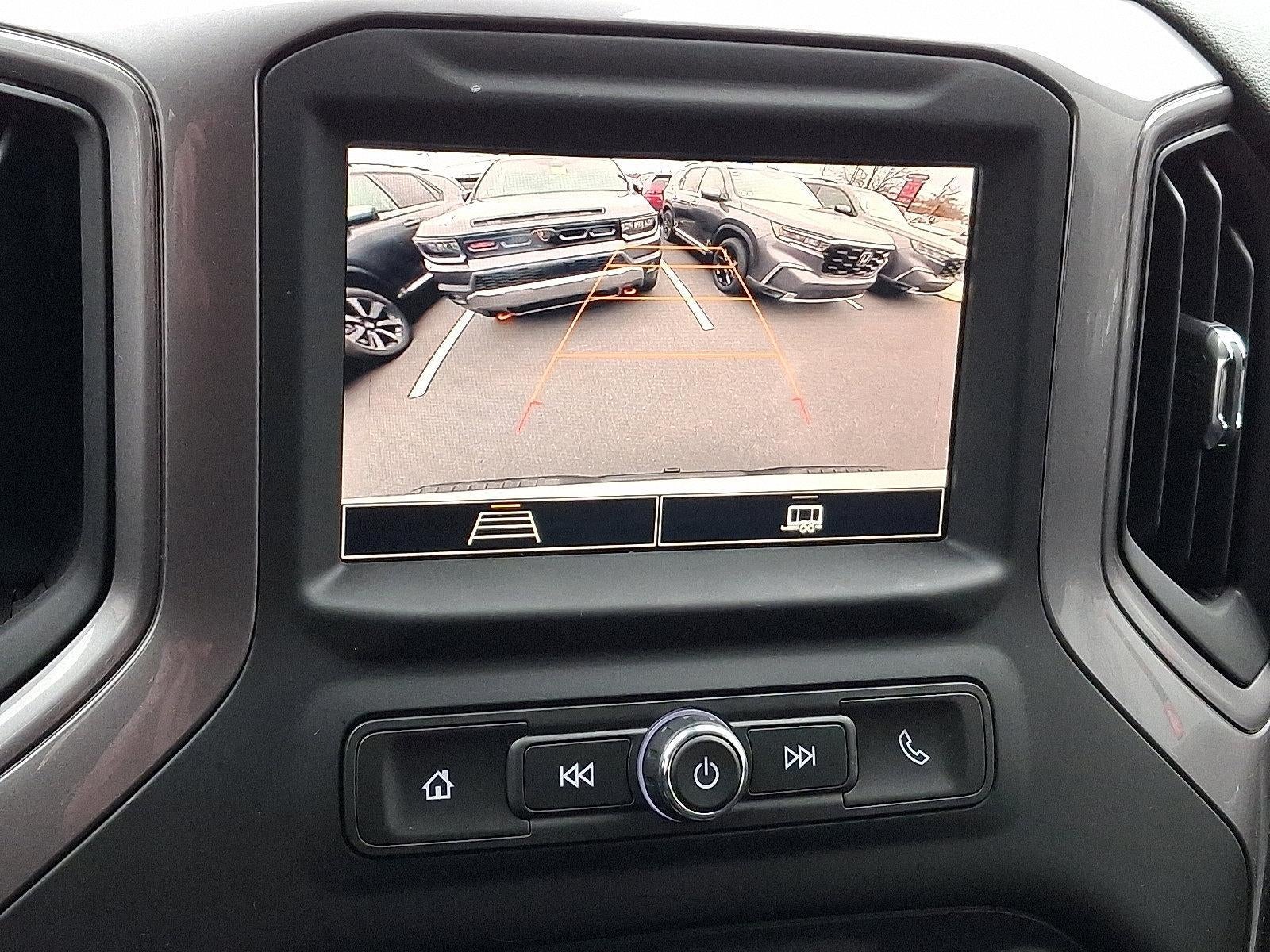

• HD Rear Vision Camera
• Lane Keep Assist with Lane Departure Warning
• Following Distance Indicator
• Forward Collision Alert
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Buckle to Drive prevents vehicle from being shifted out of Park until driver seat belt is fastened; times out after 20 seconds and encourages seat belt use, can be turned on and off in Settings menu
• Tire Pressure Monitoring System, auto learn includes Tire Fill Alert (does not apply to spare tire)

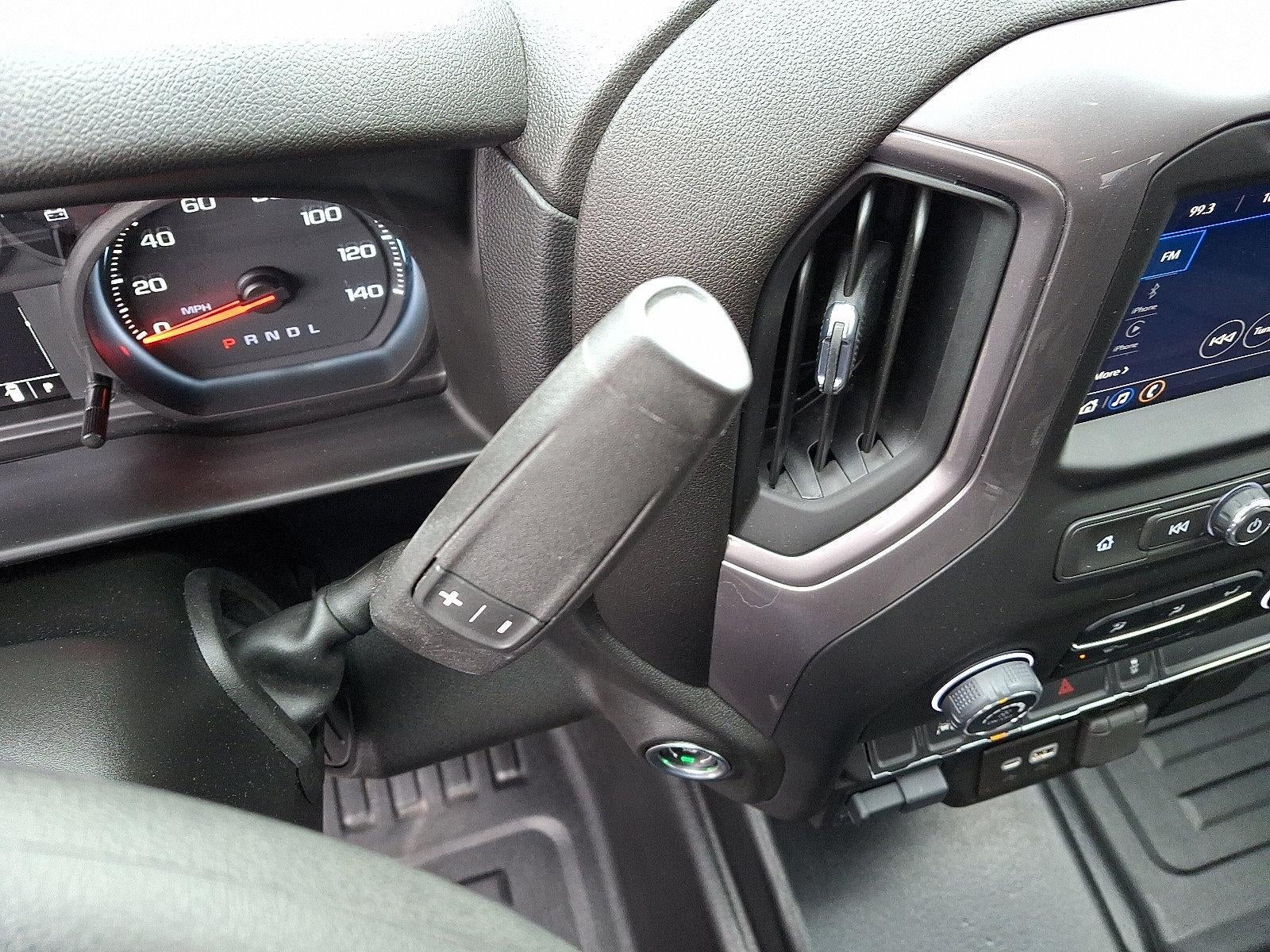

TRANSMISSION, 8-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

TIRE, SPARE 255/70R17 ALL-SEASON, BLACKWALL

• (STD)

HITCH GUIDANCE

• dynamic single line to aid in trailer alignment for hitching

WHEELS, 17" X 8" (43.2 CM X 20.3 CM) ULTRA SILVER PAINTED STEEL

• (STD)

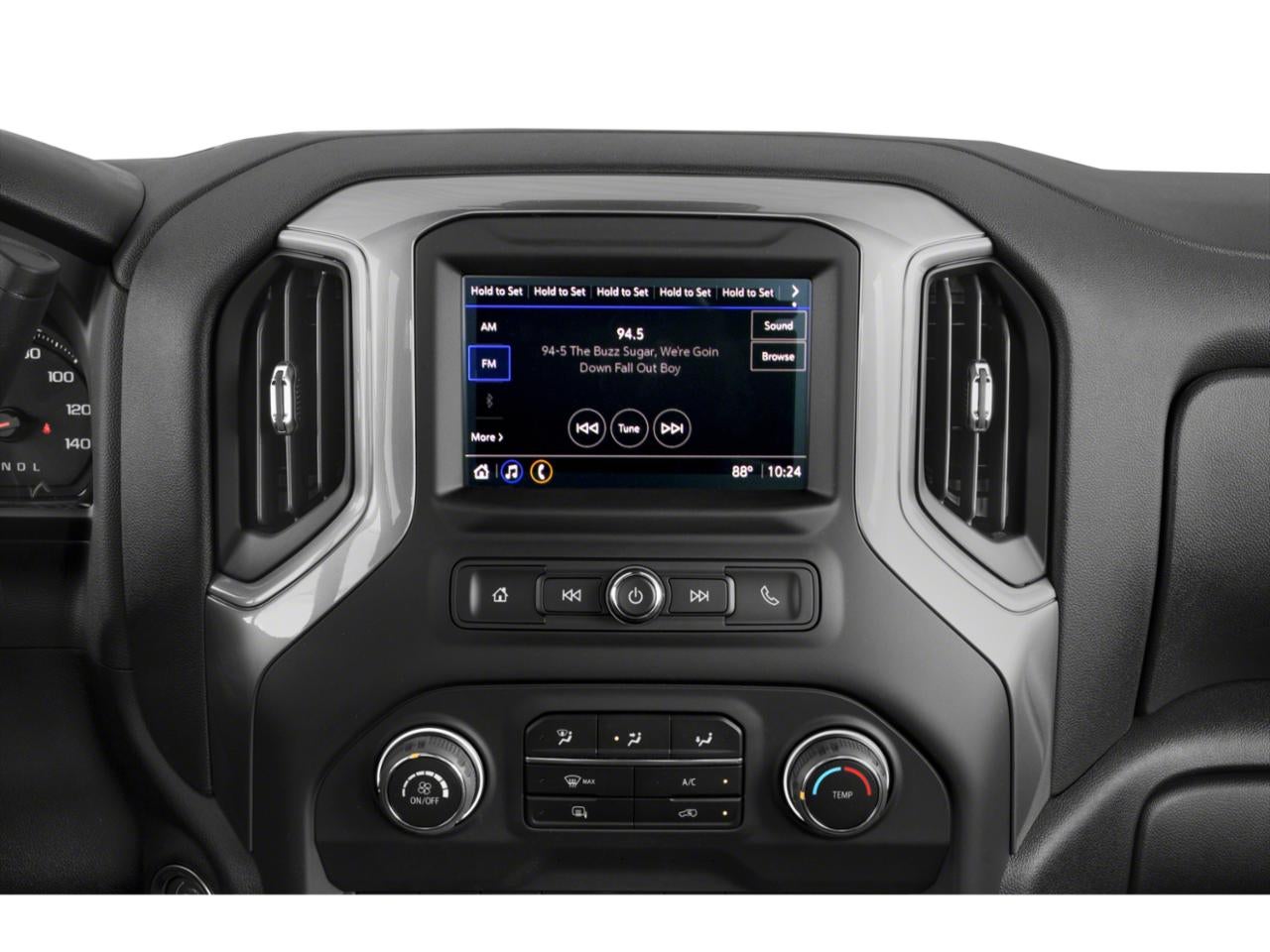

AUDIO SYSTEM, CHEVROLET INFOTAINMENT 3 SYSTEM

• 7" diagonal color touchscreen
• AM/FM stereo. Additional features for compatible phones include: Bluetooth® audio streaming for 2 active devices
• voice command pass-through to phone
• wired Apple CarPlay and Android Auto capable. (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

TRAILERING PACKAGE

• includes trailer hitch
• 7-pin and 4-pin connectors and (CTT) Hitch Guidance

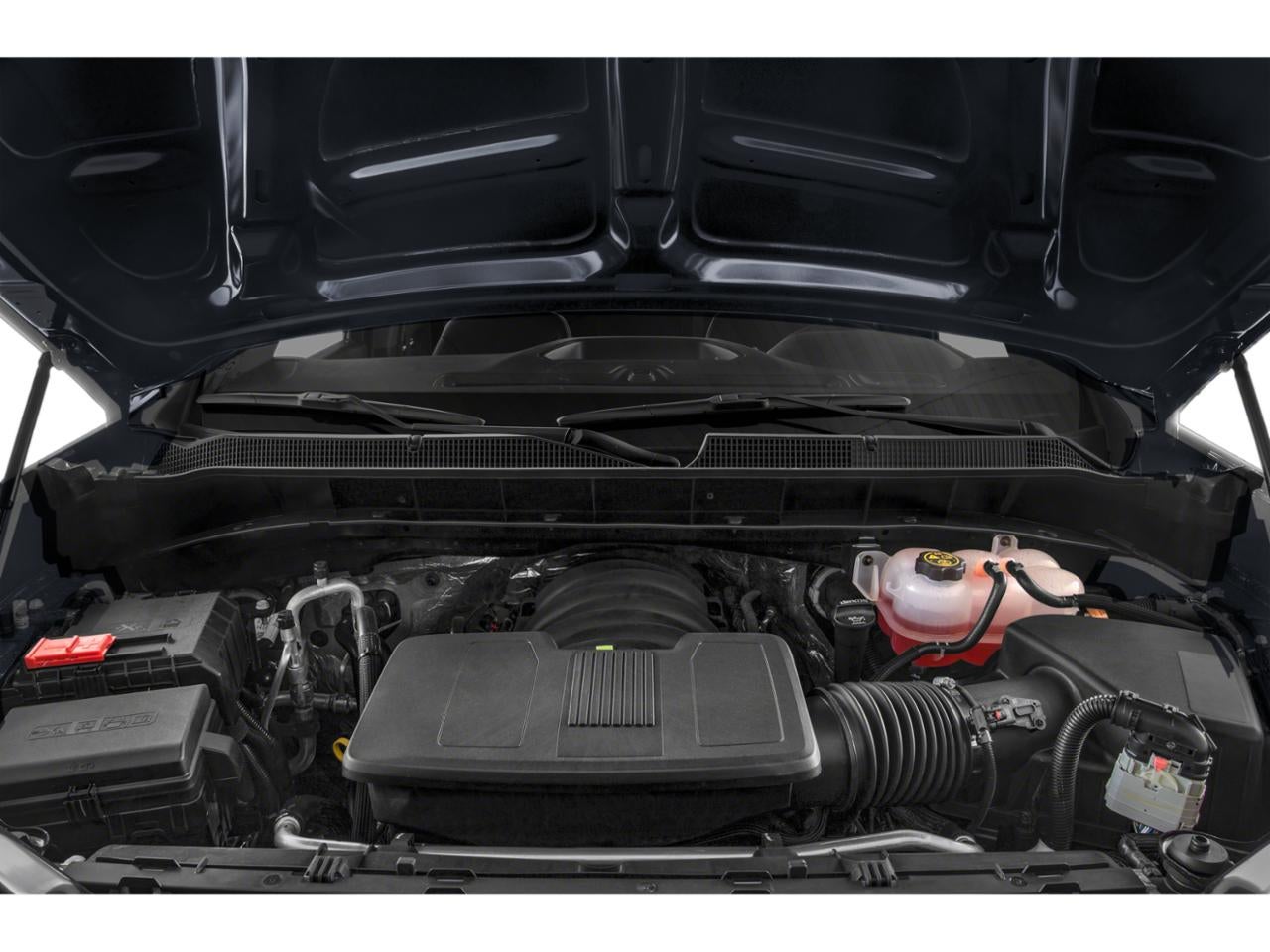

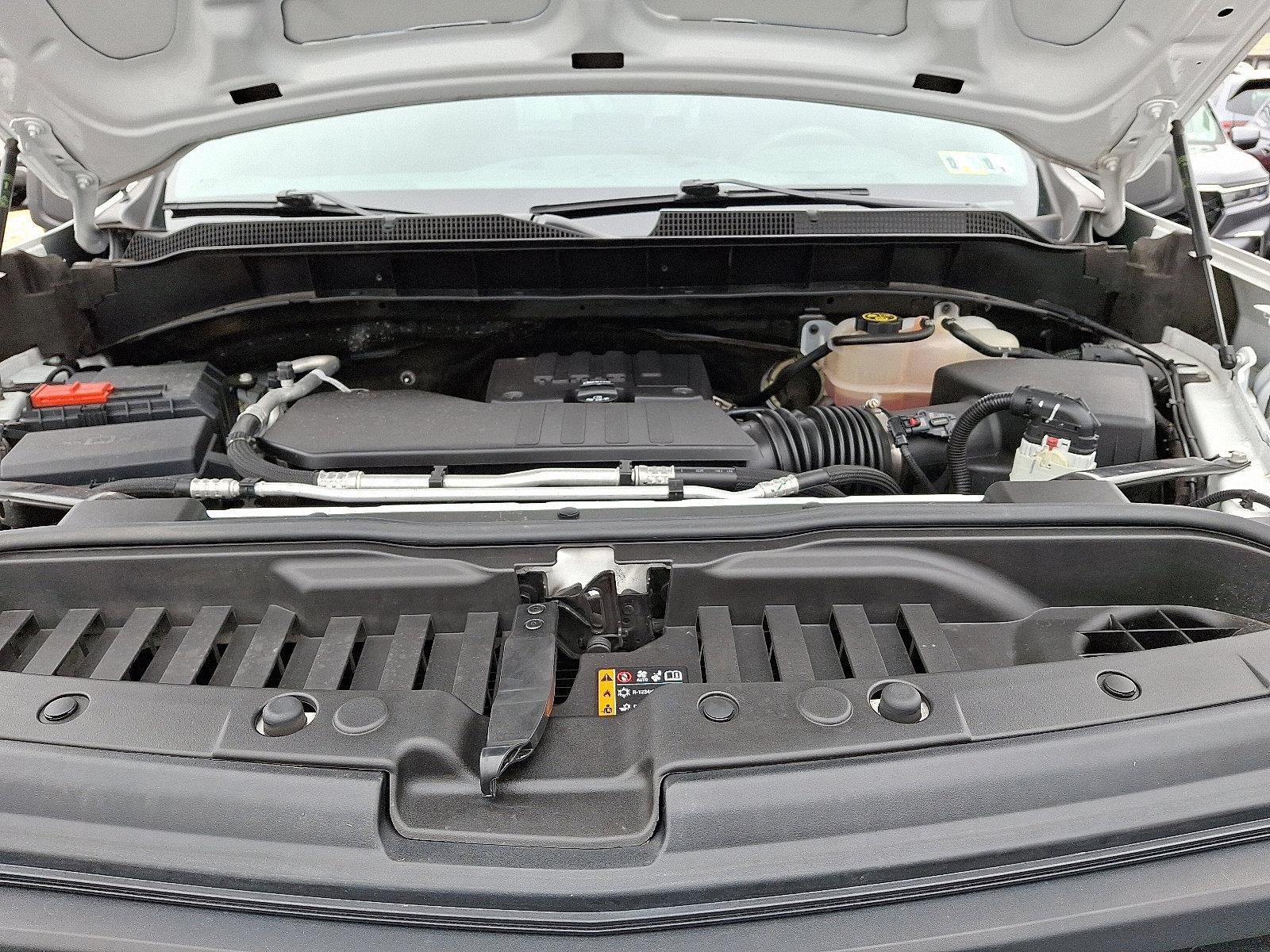

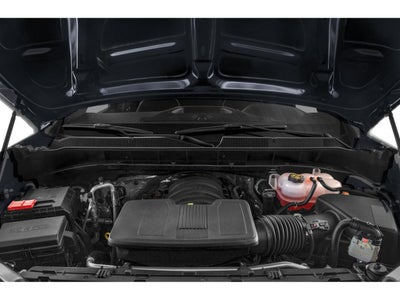

ENGINE, 2.7L TURBO HIGH-OUTPUT

• (310 hp [231 kW] @ 5600 rpm
• 430 lb-ft of torque [583 Nm] @ 3000 rpm) (STD)

TIRES, 255/70R17 ALL-SEASON, BLACKWALL

• (STD)

• SUMMIT WHITE

  NOT EQUIPPED WITH STEERING COLUMN LOCK

• SEE DEALER FOR DETAILS

  REAR AXLE

• 3.42 RATIO

  JET BLACK

• VINYL SEAT TRIM

• Mileage
• Fuel Economy Est-Combined (MPG): 19
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 220
• Cooling System
• Total Cooling System Capacity (qts): - TBD -

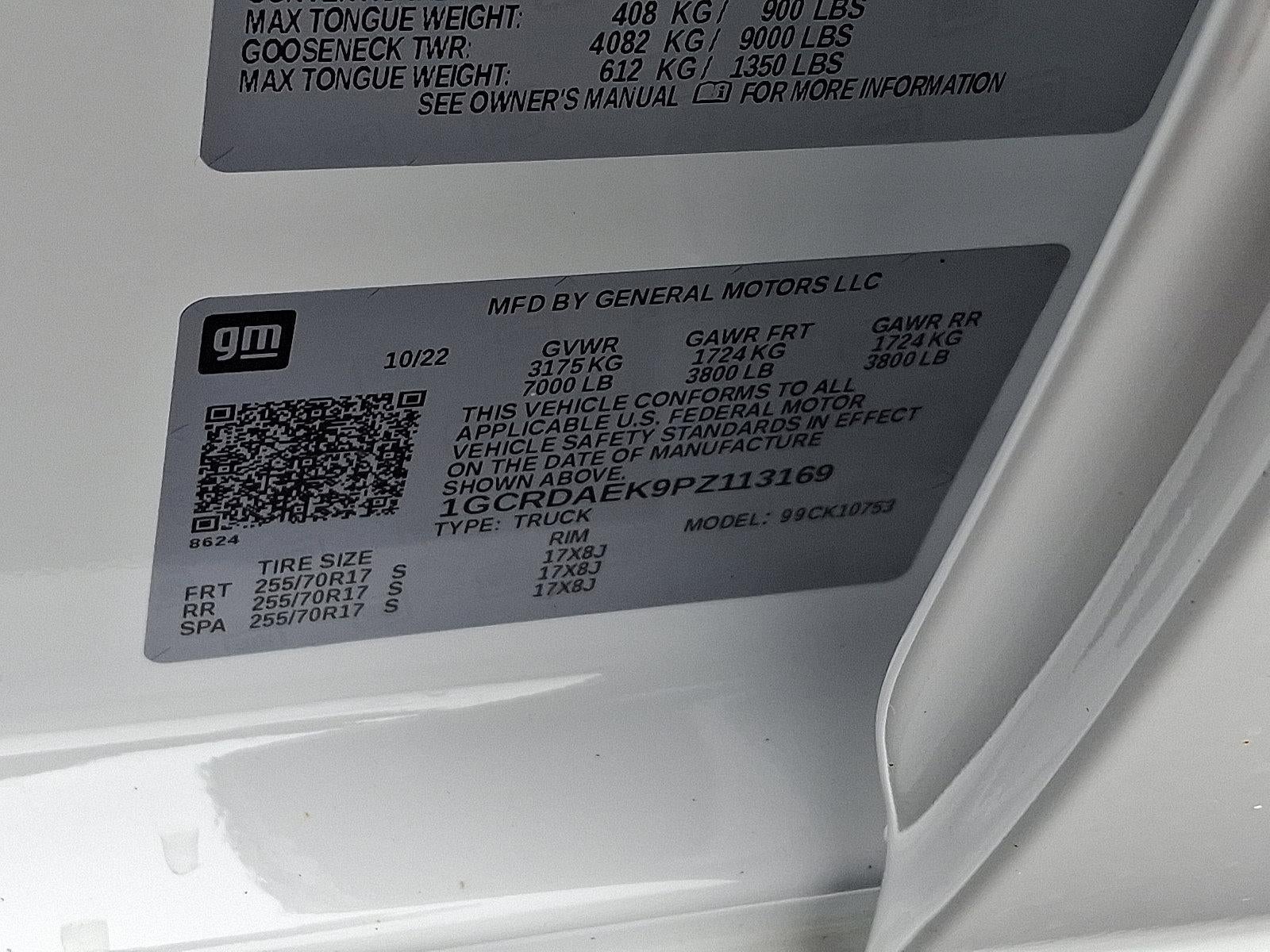

• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3800
• Gross Axle Wt Rating - Rear (lbs): 3800
• Curb Weight - Front (lbs): 2878
• Curb Weight - Rear (lbs): 1939
• Gross Vehicle Weight Rating Cap (lbs): 7000
• Gross Combined Wt Rating (lbs): 14500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 900
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2250
• Maximum Trailering Capacity (lbs): 9400
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Solid Axle
• Spring Capacity - Front (lbs): 3800
• Spring Capacity - Rear (lbs): 3850
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 3800
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.5 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: QBN
• Rear Tire Order Code: QBN
• Spare Tire Order Code: QBR
• Front Tire Size: 255/70R17
• Rear Tire Size: 255/70R17
• Spare Tire Size: 255/70R17
• Front Tire Capacity (lbs): 3800
• Rear Tire Capacity (lbs): 3800
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 8
• Rear Wheel Size (in): 17 x 8
• Spare Wheel Size (in): 17 x 8
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.3
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Box Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 24
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 147.4
• Length, Overall (in): 231.88
• Width, Max w/o mirrors (in): 81.24
• Height, Overall (in): 75.63
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.08
• Ground Clearance, Rear (in): 8.08

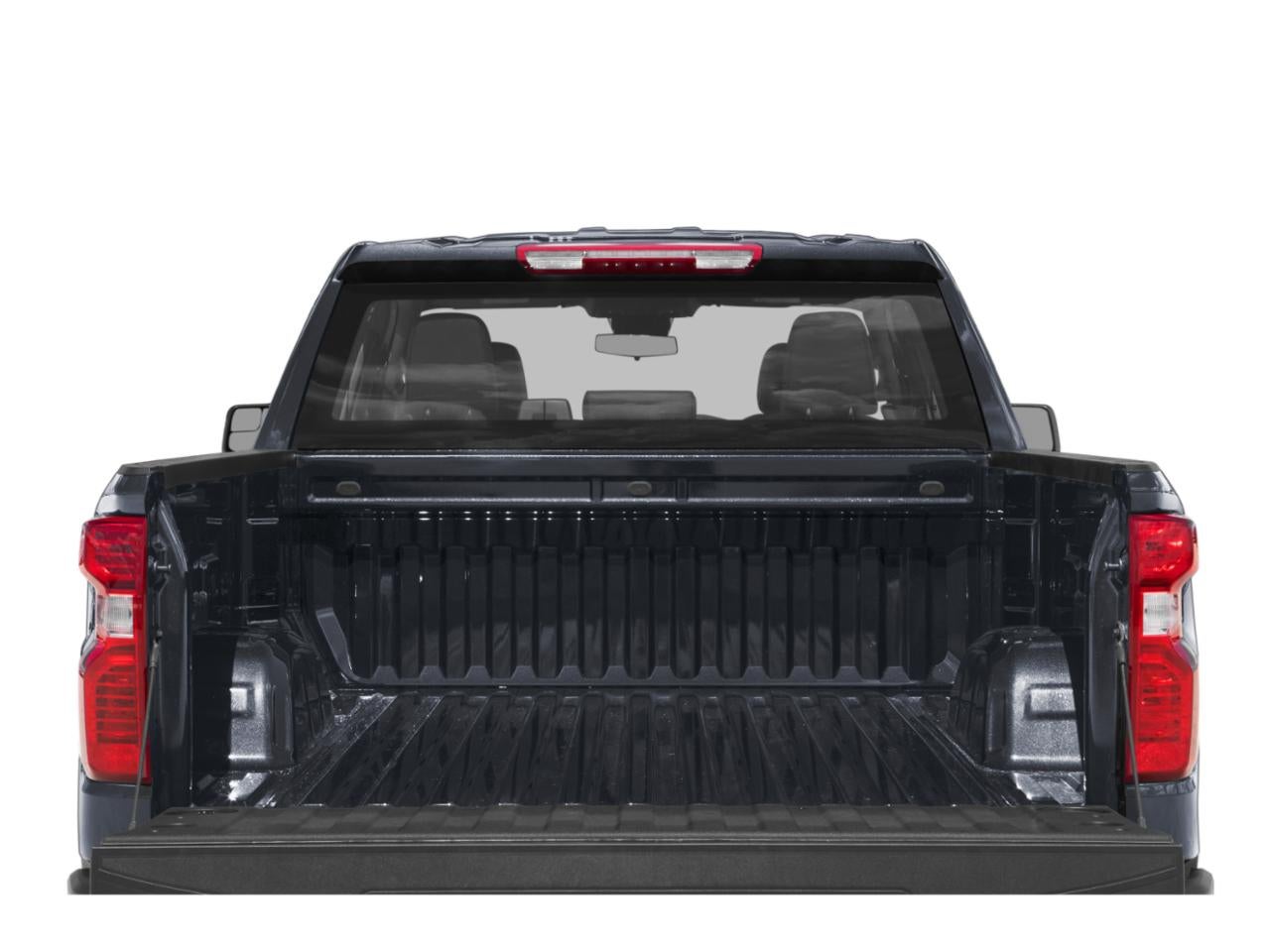

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 79.44
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.63
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 71.7
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 39.88
• Second Leg Room (in): 35.24
• Second Shoulder Room (in): 64.88
• Second Hip Room (in): 60.24
• Summary

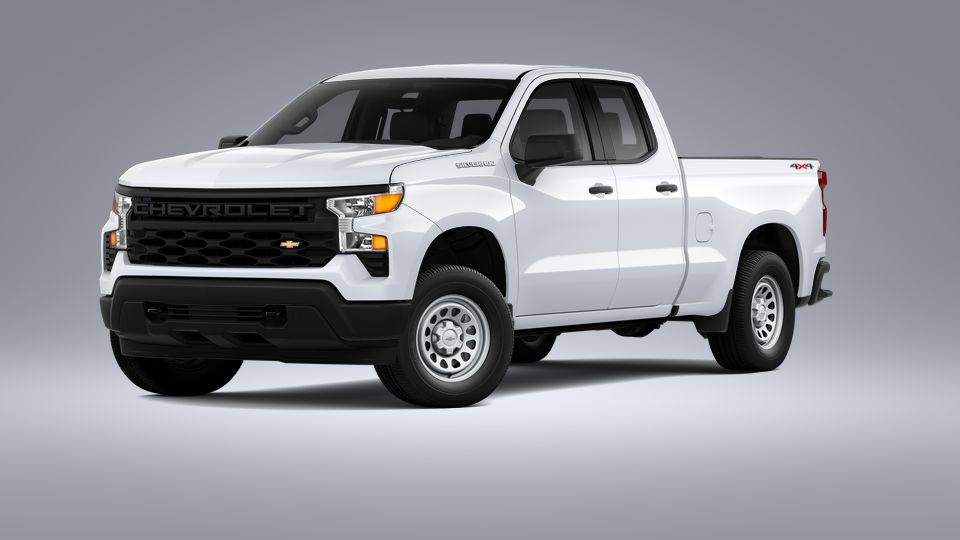

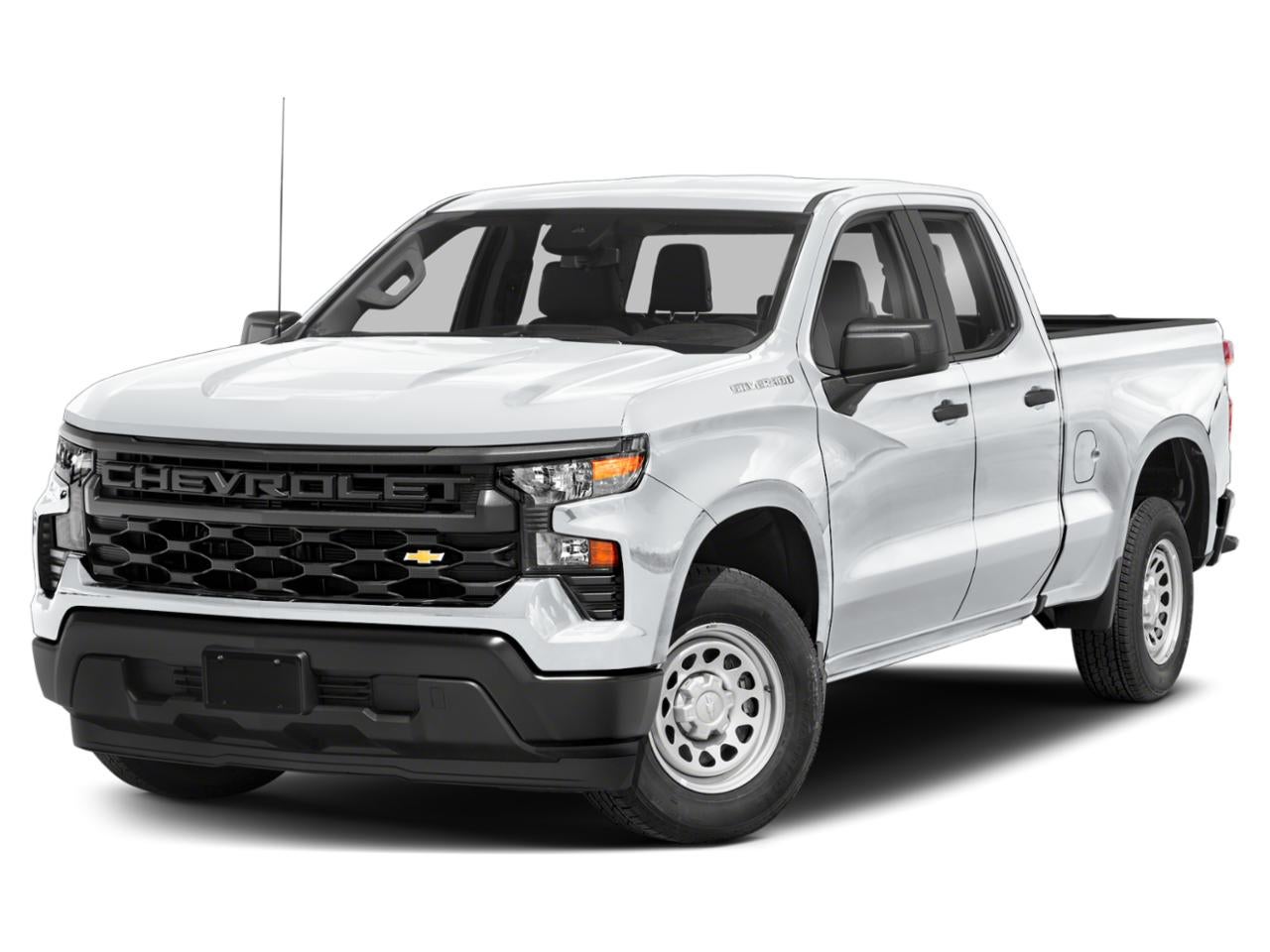

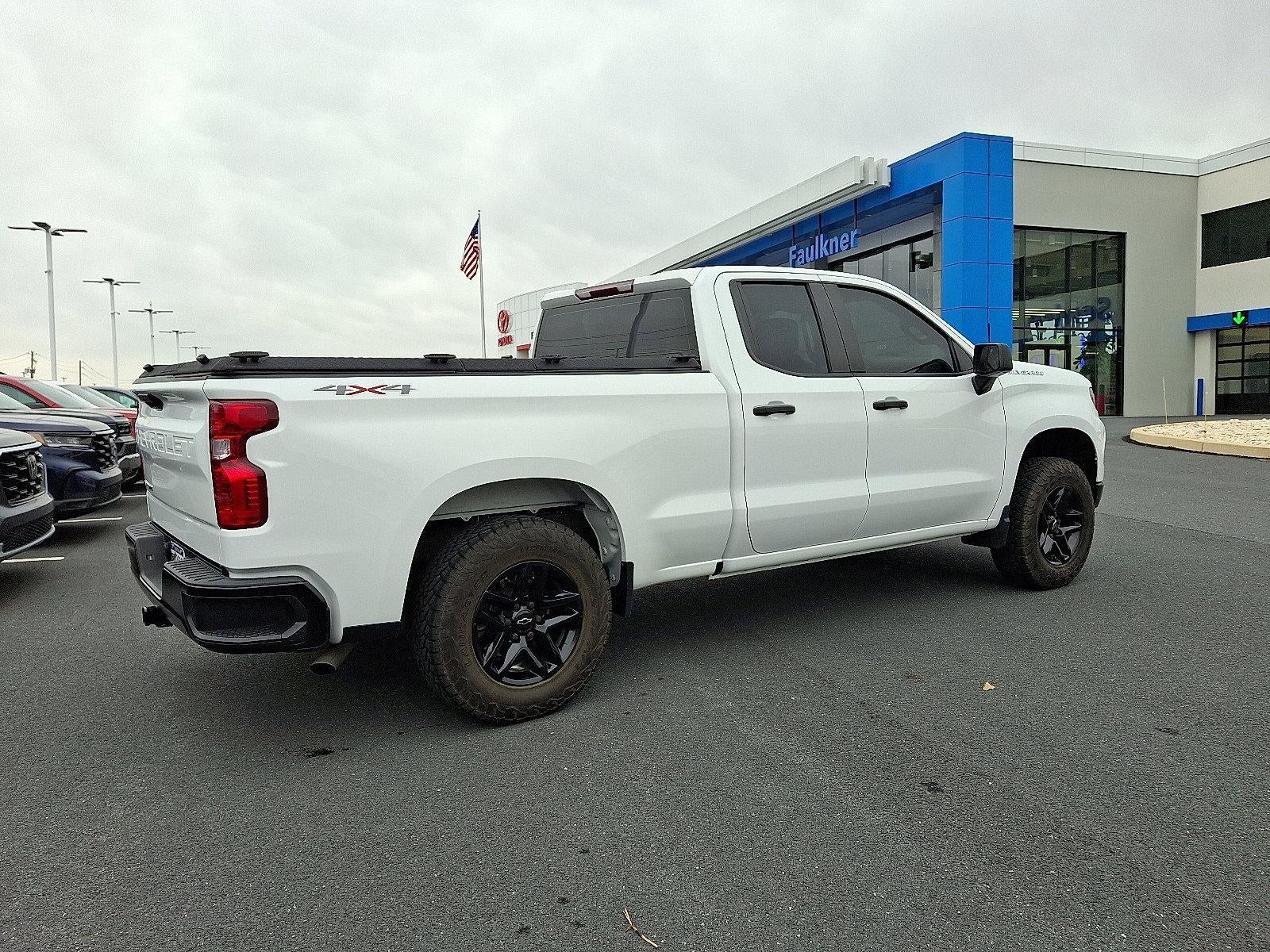

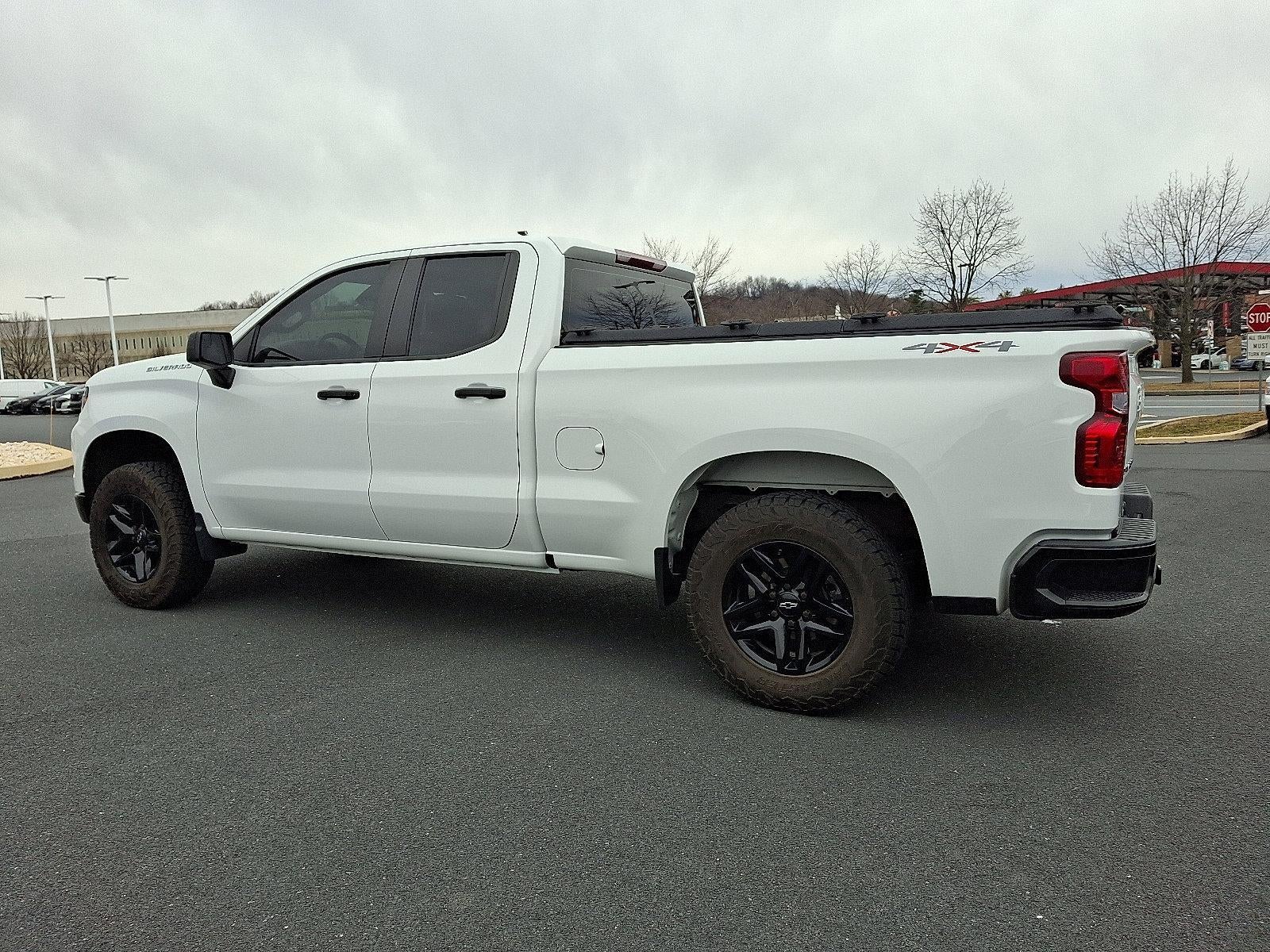

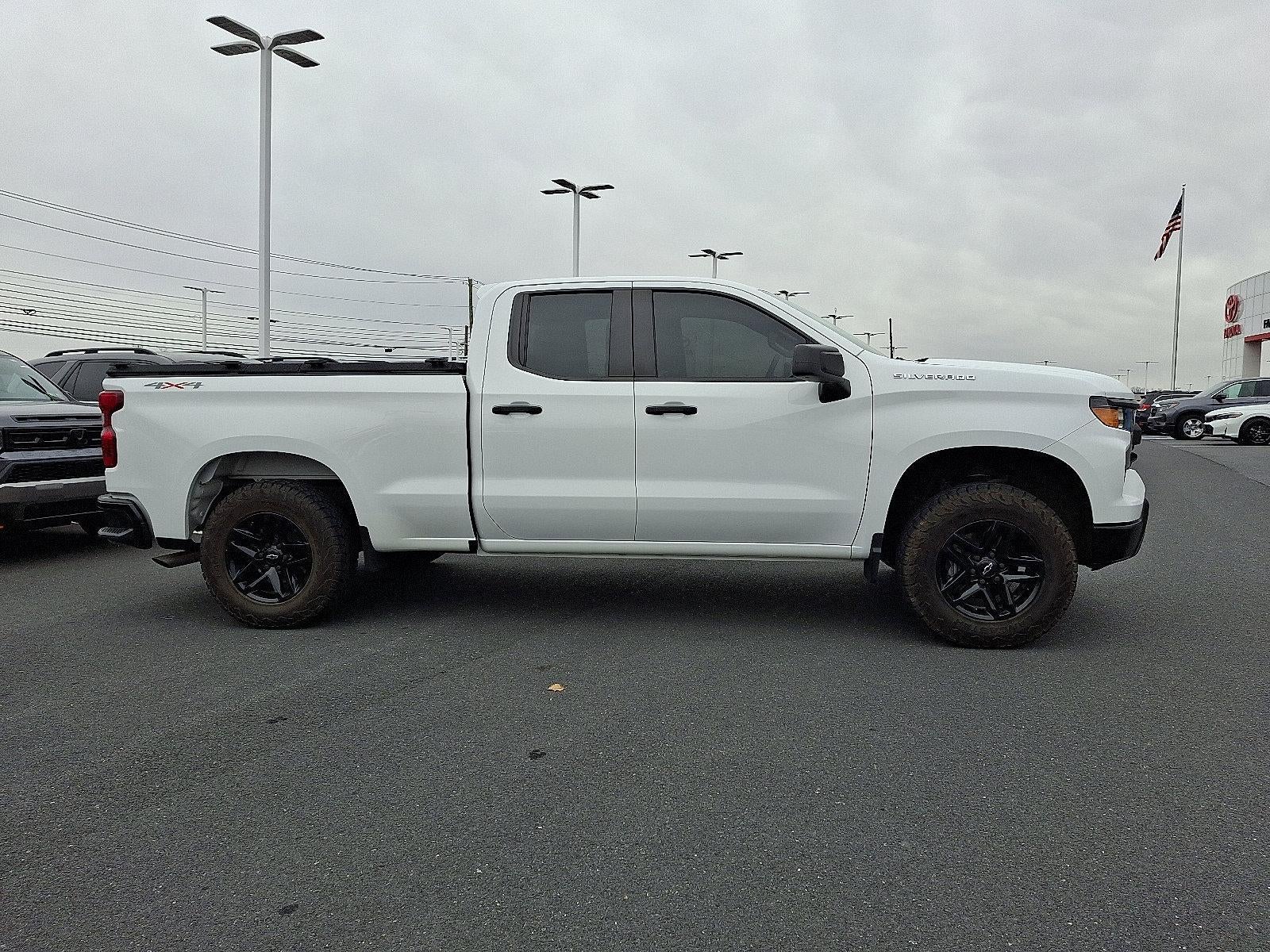

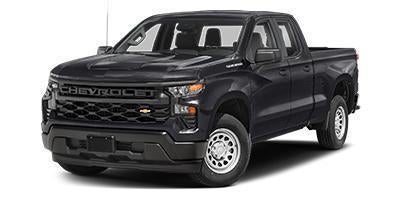

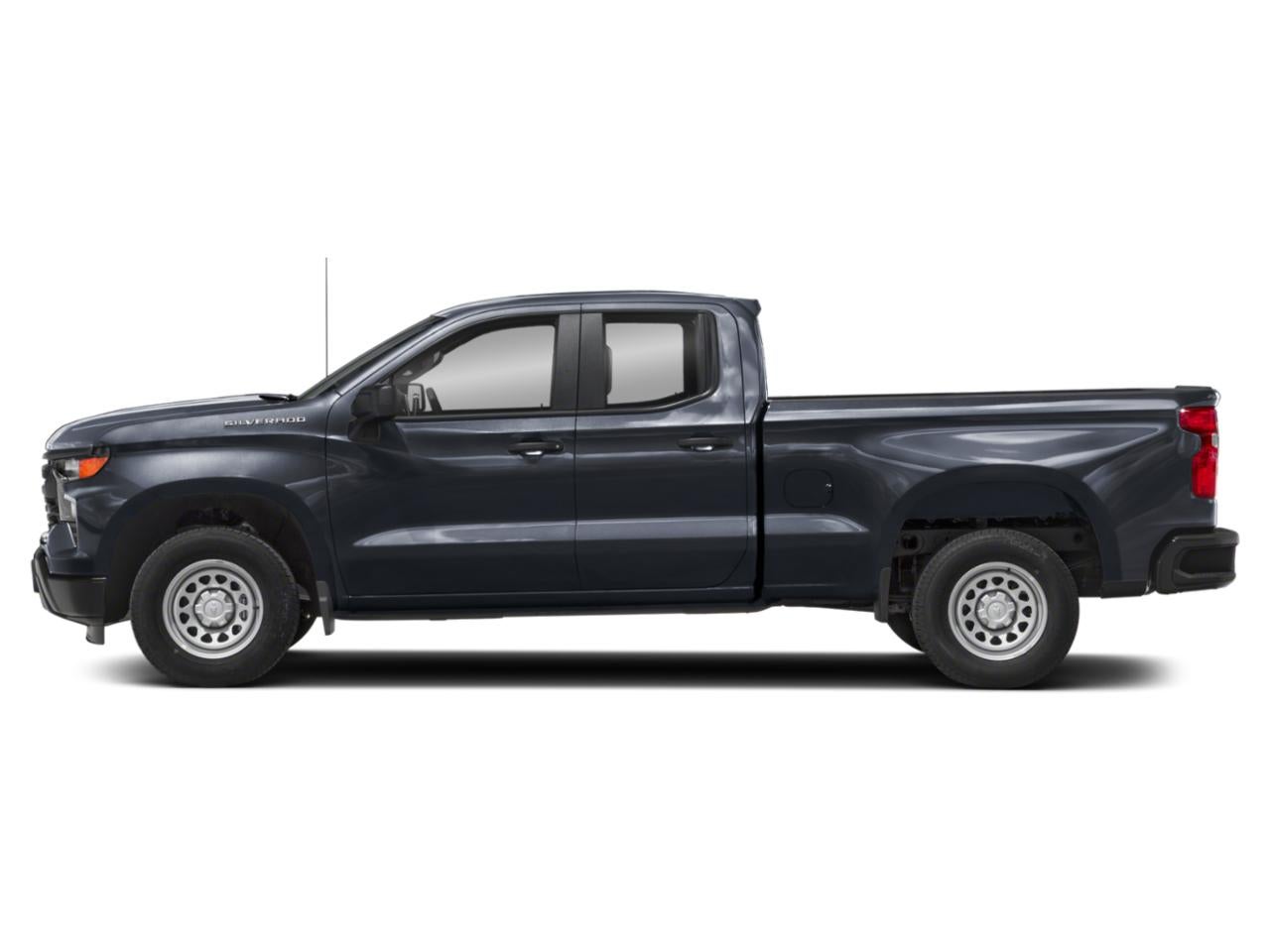

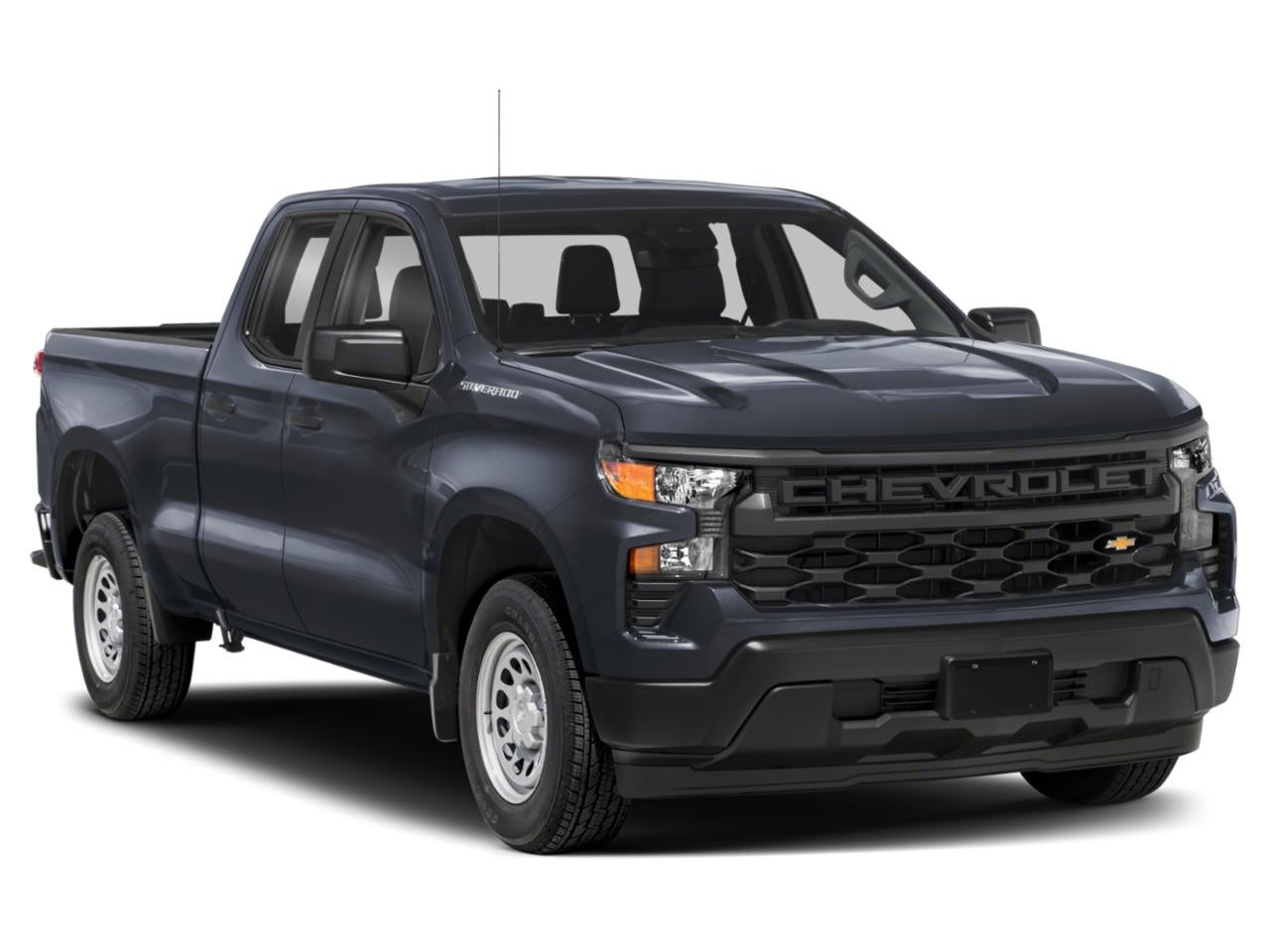

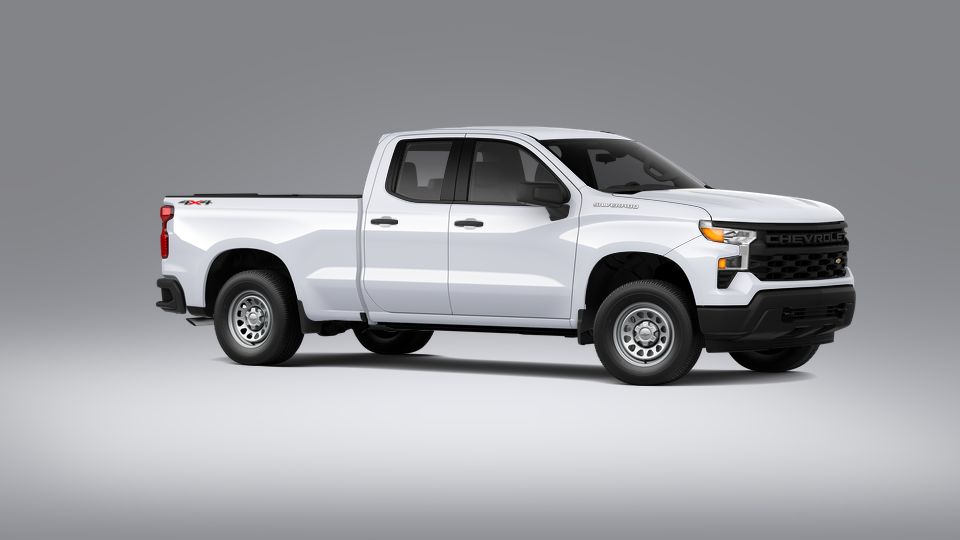

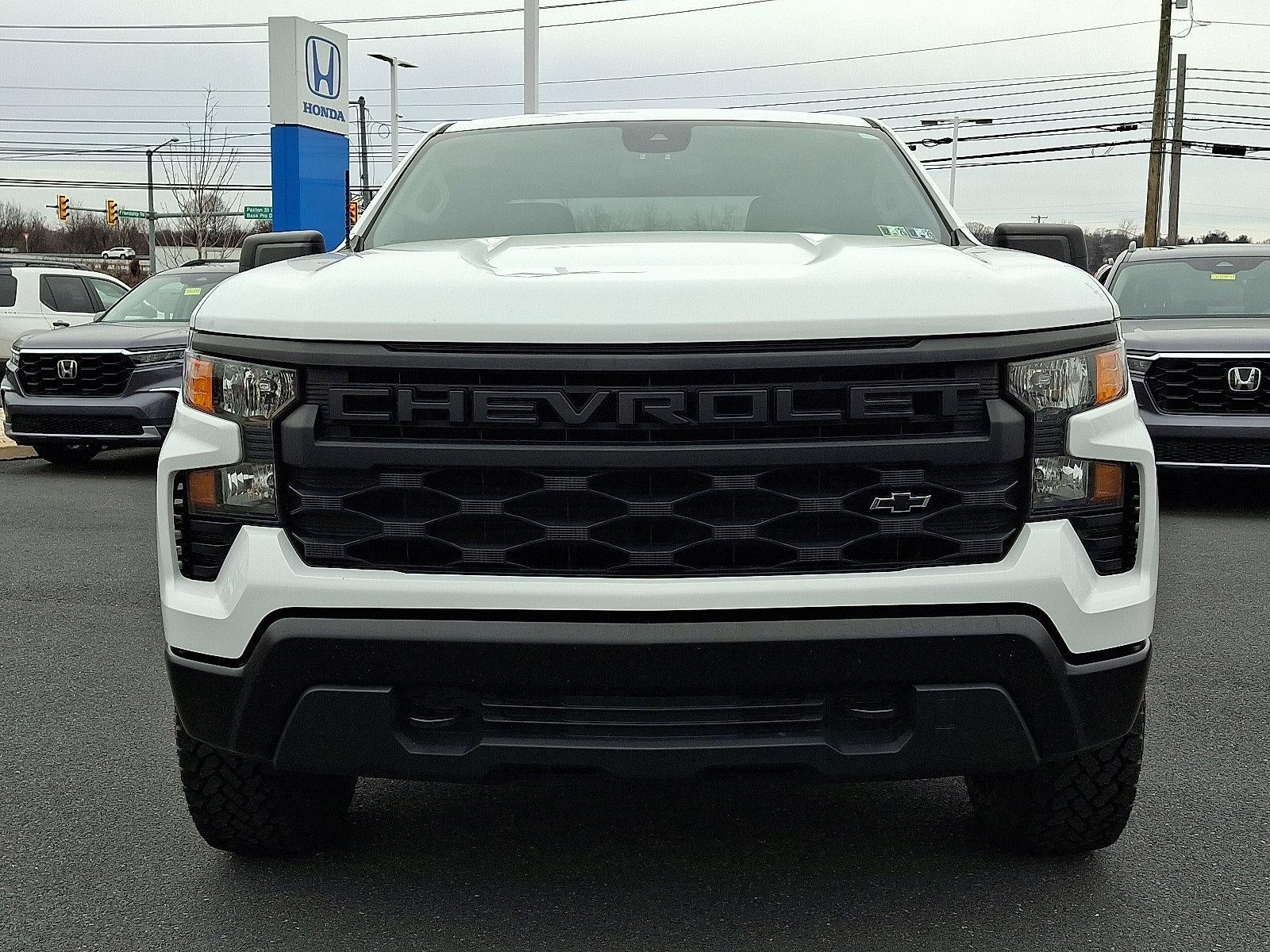

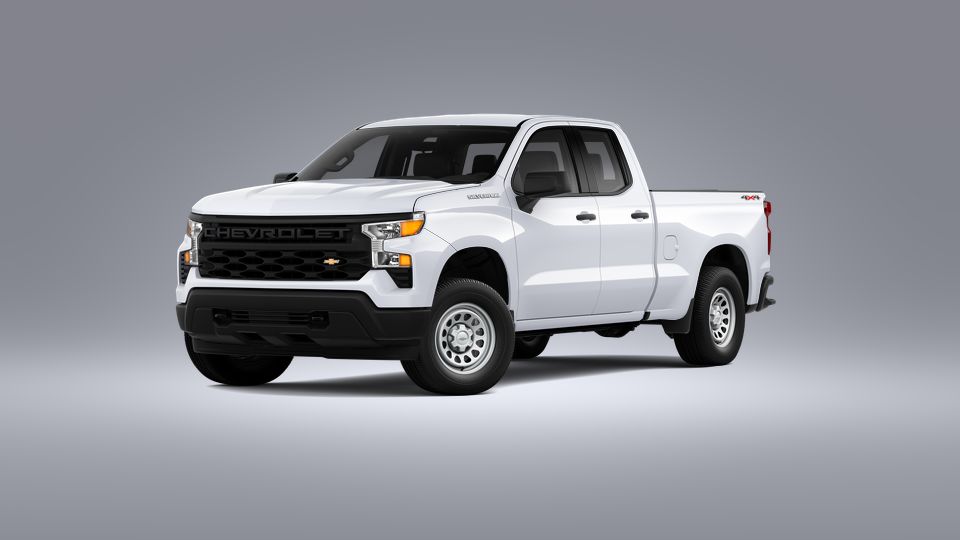

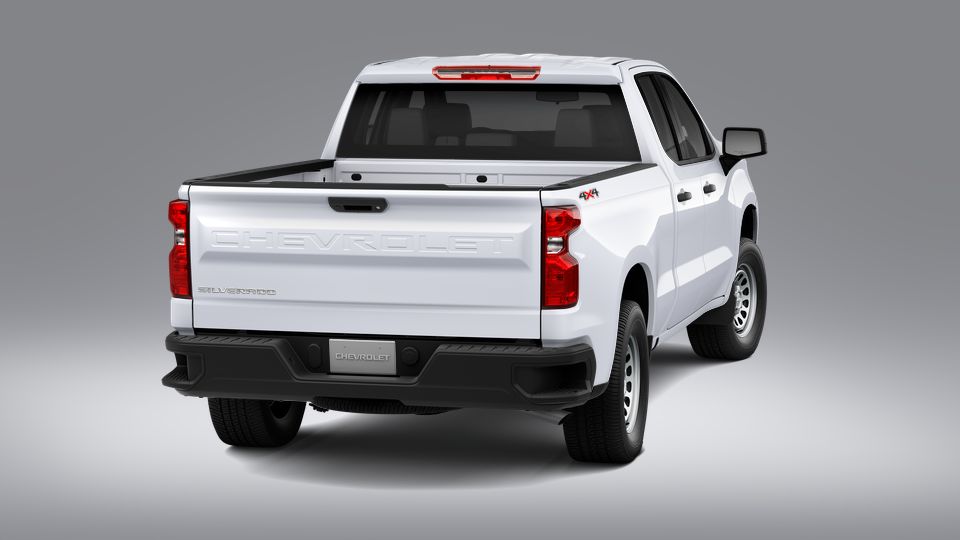

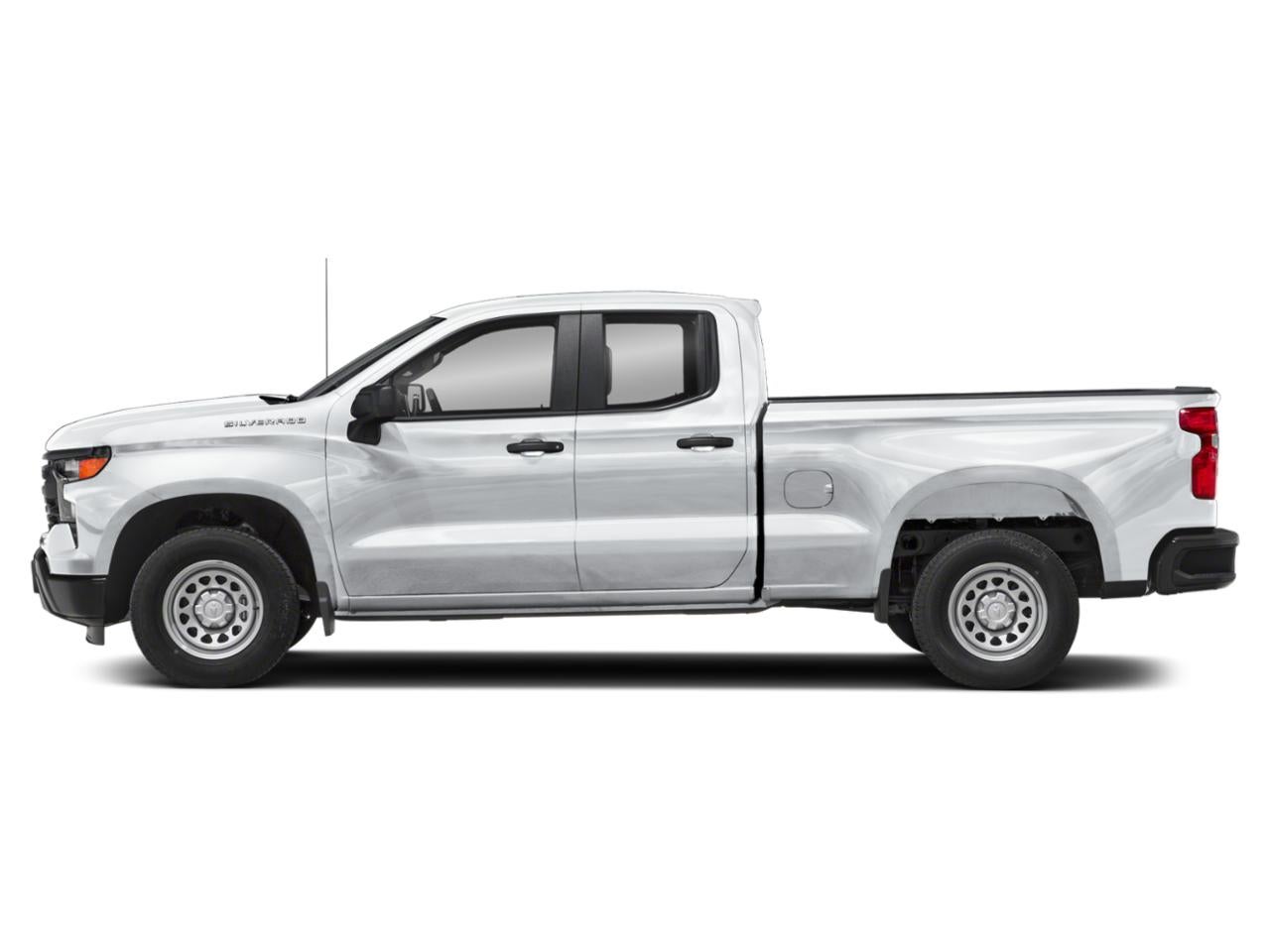

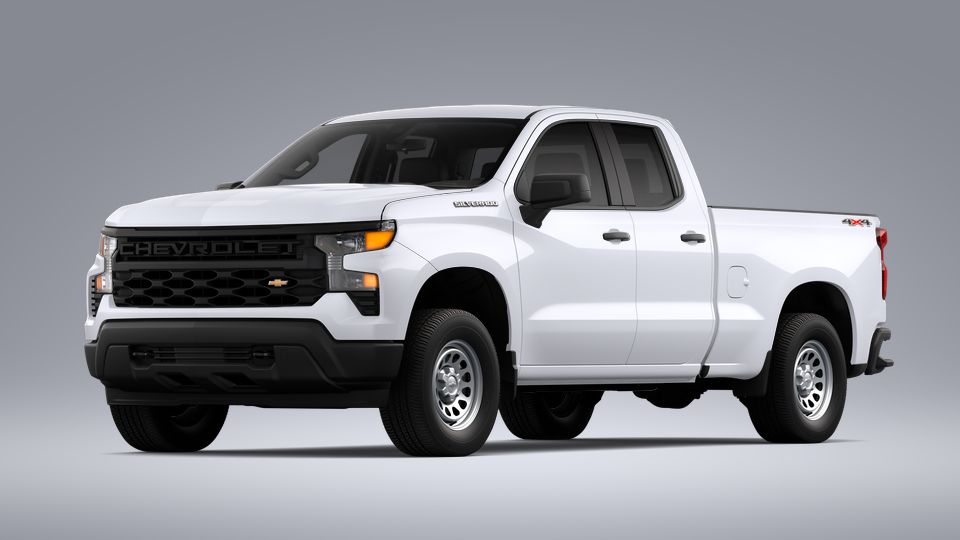

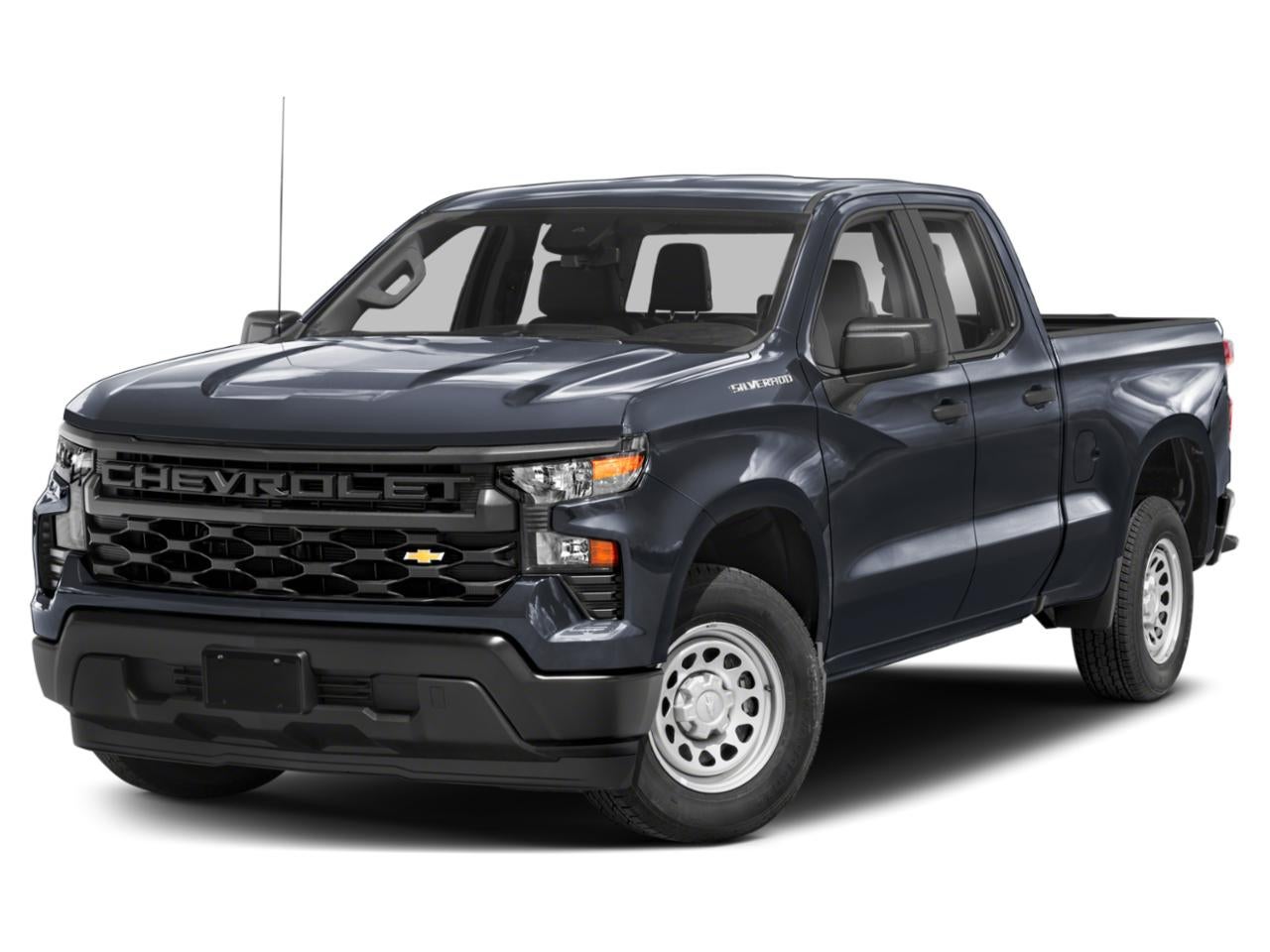

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Double Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.3
